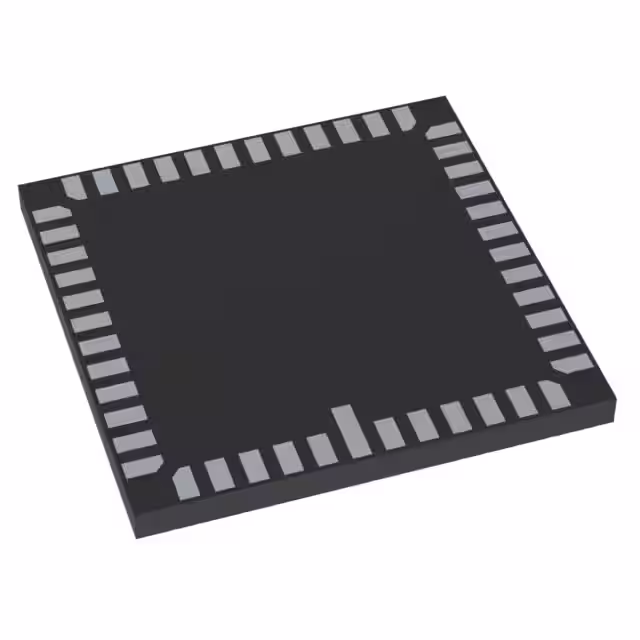

AR0238CSSC12SHRA0-DR
Or copy the link below:
- Mfr.Part #
- AR0238CSSC12SHRA0-DR
- Manufacturer
- onsemi
- Package / Case
- 48-PLCC
- Datasheet
- Download
- Description
- IMAGE SENSOR 2MP 1/3 CIS SO
- Stock
- 2,530
- In Stock ：
- 2,530
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- onsemi
- Product Category :
- Optical Sensors - Image Sensors, Camera
- Body Height :
- 1.62mm
- Surface Mount :
- yes
- Master Clock :
- 48 MHz
- Optical Format :
- 1/2.7 inch
- Output Range :
- -22-22mA
- Housing :
- Plastic
- Type :
- CMOS
- Package / Case :
- 48-PLCC
- Mounting Feature :
- Surface Mount
- Horizontal Pixel Count :
- 1928
- Factory Lead Time :
- 19 Weeks
- Pixel Size :
- 3μmx3μm
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Dynamic Range :
- 96 dB
- Moisture Sensitivity Level (MSL) :
- 4 (72 Hours)
- Active Pixel Array :
- 1920H x 1080V
- Additional Feature :
- ELECTRONIC ROLLING SHUTTER; IT ALSO OPERATES AT 2.8V NOMINAL ANALOG SUPPLY VOLTAGE
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Voltage - Supply :
- 1.8V 2.8V
- Body Breadth :
- 11.3 mm
- Operating Temperature :
- -30°C~85°C
- Body Length or Diameter :
- 11.3mm
- Published :
- 2016
- Frames per Second :
- 60
- Datasheets
- AR0238CSSC12SHRA0-DR
CMOS 3μmx3μm 4 (72 Hours) 1920H x 1080V 60 Frames per Second 48-PLCC 1.8V 2.8V -30°C~85°C 96 dB
AR0238CSSC12SHRA0-DR Overview
To ensure safety, image sensors are encapsulated in 48-PLCC packages. A voltage of 1.8V 2.8V should be supplied by the image sensors. It is recommended that the image sensor have a dynamic range of 96 dB. According to the specification, the image sensor's optical format is 1/2.7 inch.
AR0238CSSC12SHRA0-DR Features
Moisture Sensitivity Level (MSL): 4 (72 Hours)
Pixel Size: 3μmx3μm
Active Pixel Array: 1920H x 1080V
Operating Temperature: -30°C~85°C
Master Clock: 48 MHz
Horizontal Pixel Count: 1928
Output Range: -22-22mA
AR0238CSSC12SHRA0-DR Applications
There are a lot of ON Semiconductor
AR0238CSSC12SHRA0-DR Image Sensors applications.
- Mobile Devices
- Tethered PC Cameras
- Game Consoles
- Cell Phones
- Consumer Video Communications
- Surveillance Applications
- Desktop Monitor cameras
- Netbook Monitor cameras
- Medical Applications
- Industrial Applications
