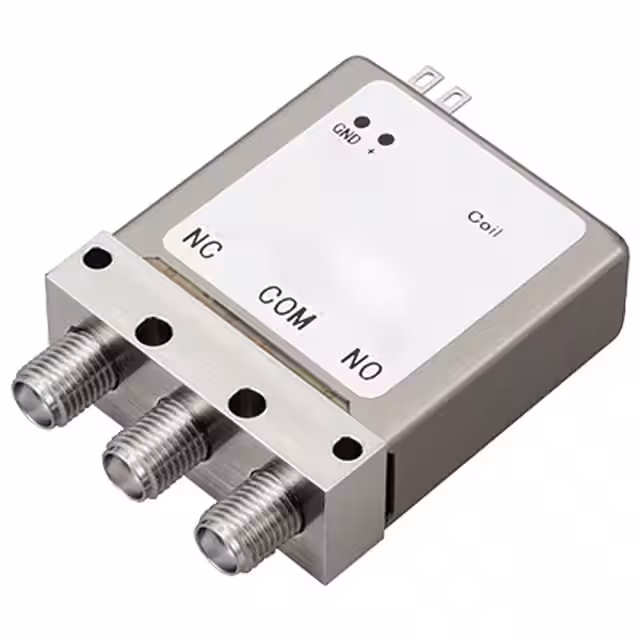

ARD52012

Manufacturer :

Panasonic

Product Category :

RF Switches

Termination Type :

Solder

Operating Frequency-Max :

26500 MHz

Contact Voltage(DC)-Max :

30 V

Body Height :

39 mm

VSWR :

1.7

Mounting Feature :

Panel Mount

Topology :

Reflective

Relay Function :

SPDT

Manufacturer :

Panasonic Electronic Components

Body Length or Diameter :

34 mm

HTS Code :

8536.41.00.20

Surface Mount :

No

Contact Current(DC)-Max :

0.1 A

Contact Current(AC)-Max :

0.1 A

Packing Method :

BOX; BULK

Electrical Life :

5000000 Cycle(s)

IIP3 :

-

Series :

-

Base Product Number :

ARD520

Pbfree Code :

yes

Supplier Device Package :

Module

Coil/Input Supply Type :

DC

Reach Compliance Code :

Compliant

Product Status :

Active

Coil Resistance :

190 Ω

Body Breadth :

13.2 mm

Characteristic Impedance :

50 Ω

Operate Time :

15 ms

Package :

Bulk

Coil Power :

750 mW

Coil Voltage(DC)-Max :

12 V

Package / Case :

Module, Pin Contacts

Physical Dimension :

34mm x 13.2mm x 39mm

Switching Time :

15 ms

Operating Frequency-Min :

18000 MHz

Relay Action :

LATCHED

Operating Temperature :

-55°C ~ 85°C

Features :

-

Impedance :

50Ohm

Voltage - Supply :

12V

Contact Voltage(AC)-Max :

30 V

P1dB :

-

Contact/Output Supply Type :

AC/DC

Circuit :

SPDT

ECCN Code :

EAR99

Relay Type :

RF COAXIAL RELAY

RF Type :

GENERAL PURPOSE

Coil Current(DC)-Max :

0.063 A
