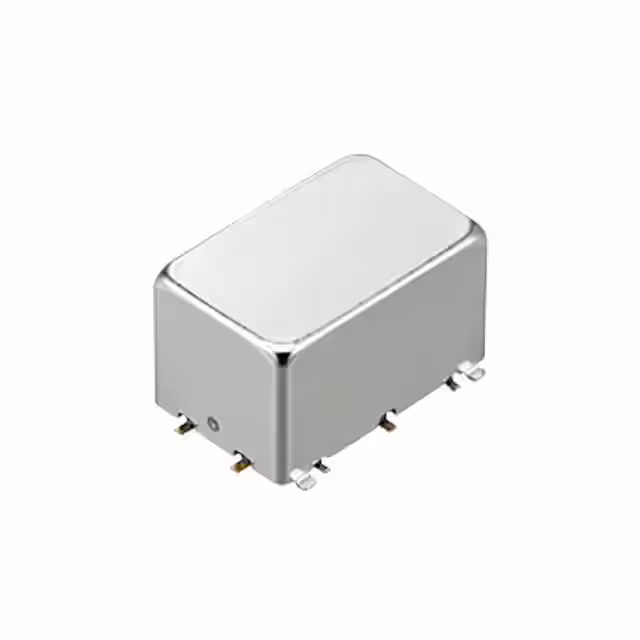

ARJ20A24Z
Or copy the link below:
- Mfr.Part #
- ARJ20A24Z
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- RELAY RF DPDT 300MA 24V
- Stock
- 26,301
- In Stock ：
- 26,301
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- High Frequency (RF) Relays
- Manufacturer :
- Panasonic
- Contact Current Rating :
- 300 mA
- Operate Time :
- 5 ms
- Switching Voltage :
- 30VDC - Max
- Package :
- Tape and Reel (TR)
- Isolation :
- 35 dB
- Features :
- -
- Brand :
- Panasonic Industrial Devices
- Product Type :
- High Frequency Relays
- Contact Termination :
- Solder Terminal
- Must Operate Voltage :
- 18 VDC
- Product Status :
- Active
- Subcategory :
- Relays
- Coil Power :
- 200mW
- Frequency :
- 5 GHz
- Coil Current :
- 8.3 mA
- Product Category :
- High Frequency / RF Relays
- Series :
- ARJ
- Coil Voltage :
- 24VDC
- Coil Resistance :
- 2.88 kOhms
- Must Release Voltage :
- 2.4 VDC
- Release Time :
- 5 ms
- Termination Style :
- Gull wing
- Operating Temperature :
- -30°C ~ 70°C
- VSWR :
- 1.25
- Power Consumption :
- 200 mW
- Contact Rating (Current) :
- 300 mA
- Coil Type :
- Non Latching
- Mounting Type :
- Surface Mount
- Contact Material :
- Gold Plating
- Contact Form :
- DPDT (2 Form C)
- Insertion Loss :
- 0.5 dB
- Impedance :
- 50 Ohms
- Datasheets
- ARJ20A24Z
ARJ20A24Z datasheet pdf and High Frequency (RF) Relays product details from Panasonic Electric Works stock available at
