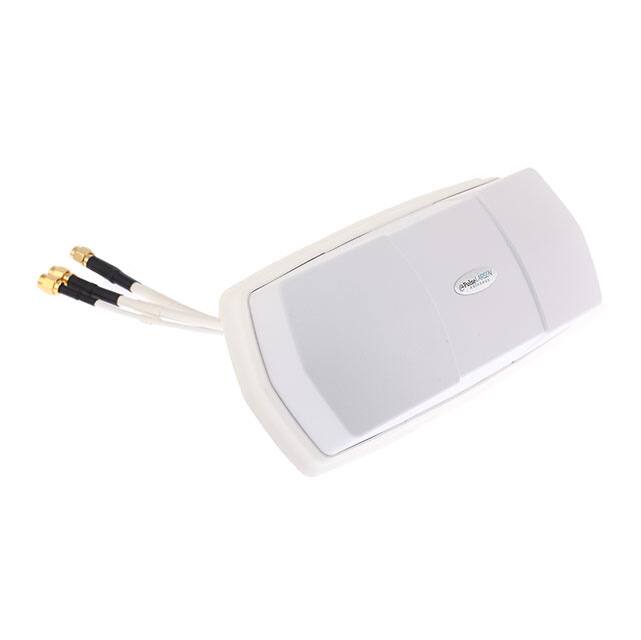

ARM32012AM

Manufacturer :

Pulse Electronics

Product Category :

RF Antennas

Termination :

SMA Male (3)

Product Type :

Multiband Antennas

Antenna Type :

Module

Height (Max) :

1.772 (45.00mm)

Length :

202.3 mm

Product Category :

Antennas

Antenna Connector Type :

SMA Male

Return Loss :

-

Type :

Plug, Male Pins

Number of Positions :

6

Voltage - UL :

300V

Mounting Style :

Adhesive Mount

Color :

Green

Packaging :

Bulk

VSWR :

2, 2.5

Material Flammability Rating :

UL94 V-0

Current - UL :

4A

Header Orientation :

--

Width :

88.5 mm

Package :

Bulk

Operating Temperature :

-40°C ~ 115°C

Height :

45 mm

Pitch :

0.150 (3.81mm)

Mounting Type :

Free Hanging (In-Line)

Frequency Range :

698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz

Cable Length :

5181 mm

Brand :

Pulse Electronics

Contact Material :

Phosphor Bronze

Maximum Operating Temperature :

+ 85 C

Subcategory :

Antennas

Wire Strip Length :

9-10mm

Screw Size :

--

Minimum Operating Temperature :

- 40 C

Ingress Protection :

--

Applications :

GPS, LTE

Number of Levels :

1

Contact Mating Finish :

Tin

Contact Tail Length :

--

Product Status :

Active

Frequency (Center/Band) :

829MHz, 1.582GHz, 2.2GHz

Wire Gauge or Range - mm² :

--

Polarization :

Vertical

Plug Wire Entry :

180°

Current - IEC :

--

RoHS :

Details

Gain :

4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi

Insulation Height :

0.488 (12.40mm)

Frequency Group :

Wide Band

Product :

Vehicle Antennas

Reach Compliance Code :

Compliant

RF Family/Standard :

Cellular, Navigation

Housing Material :

Thermoplastic

Termination Style :

Screwless - Leg Spring, Push-In Spring

Factory Lead Time :

16 Weeks

Number of Bands :

3

Impedance :

50 Ohms

Features :

Mating Flange

Wire Gauge or Range - AWG :

16-28 AWG

Positions Per Level :

6

Manufacturer :

Pulse

Series :

H5

Torque - Screw :

--
