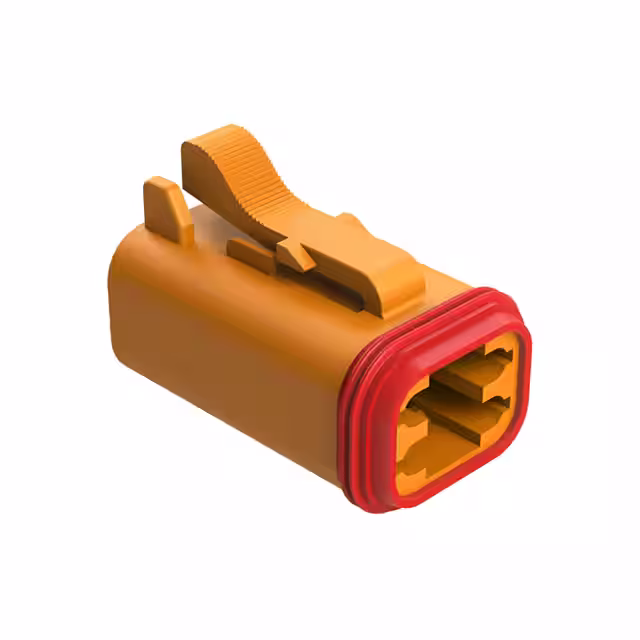

AT06-4S-ORG

Manufacturer :

Amphenol Sine Systems

Product Category :

Rectangular Connector Housings

Number of Positions :

4

Connector Type :

PLUG

Product :

Connectors

Height :

18.6 mm

Product Status :

Active

Row Spacing :

-

Color :

Orange

Voltage Rating :

-

Number of Rows :

2

Current Rating :

13A

Base Product Number :

AT06-4S

Housing Material :

Thermoplastic (TP)

Features :

Sealed

Note :

Contacts Not Included

Minimum Operating Temperature :

- 55 C

Gender :

PLUG

Series :

AT Series™

Contact Type :

Female Socket

Mounting Style :

Cable Mount / Free Hanging

Maximum Operating Temperature :

+ 125 C

Contact Gender :

Without Socket Contacts

Mounting Angle :

Straight

Package :

Box

Fastening Type :

Latch Lock

IP Rating :

IP67, IP68, IP69K

Product Type :

Automotive Connectors

Length :

31 mm

Accessory Type :

-

Dimensions :

31 mm x 18.2 mm x 18.6 mm

Mounting Type :

Free Hanging (In-Line)

Insulation Resistance :

1000 MOhms

Insulation :

Insulated

Contact Termination :

Crimp

Width :

18.2 mm

For Use With :

Amphenol AT Series Size 16 Automotive Socket Contacts

Pitch :

-

Subcategory :

Automotive Connectors
