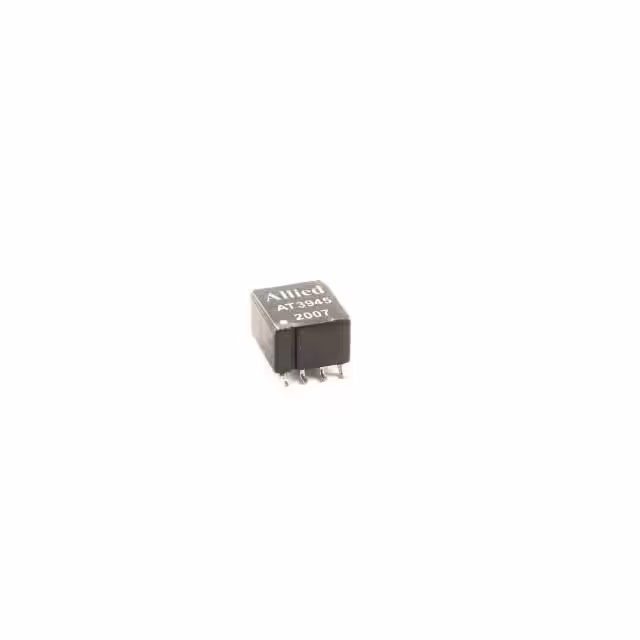

AT3945

Manufacturer :

Allied Components International

Product Category :

Audio Transformers

DC Resistance (DCR) - Secondary :

-

Product Status :

Active

Mounting Type :

Surface Mount

DC Resistance (DCR) - Primary :

-

Package :

Tape and Reel (TR)

Insertion Loss :

-

Operating Temperature :

0°C ~ 70°C

Voltage - Isolation :

2000V

Termination Style :

Gull wing

Impedance - Secondary (Ohms) :

-

Frequency Response :

-

Weight :

-

Frequency Range :

100kHz ~ 55MHz

Transformer Type :

Data/Voice

Approval Agency :

-

Turns Ratio - Primary:Secondary :

1:1

Size / Dimension :

0.461" L x 0.394" W (11.70mm x 10.00mm)

Power Level :

-

Height - Seated (Max) :

0.299" (7.60mm)

Return Loss :

20dB Min @ 100kHz ~ 10MHz

Impedance - Primary (Ohms) :

-

Series :

-
