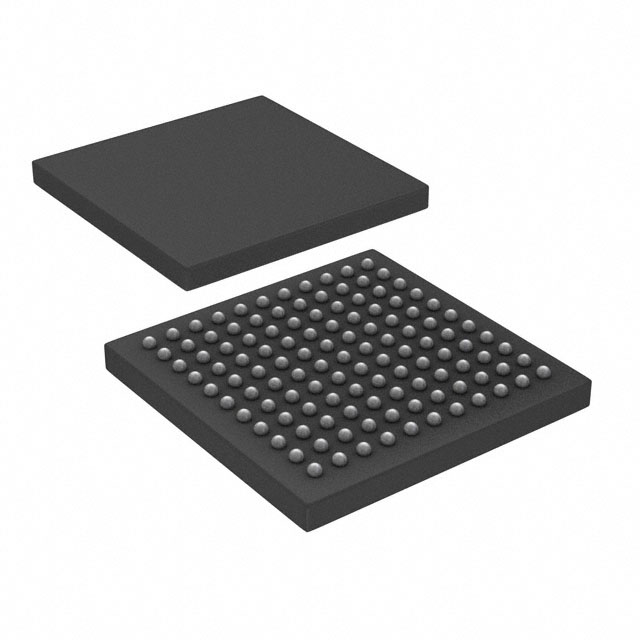

AT91FR40162SB-CU

Manufacturer :

Microchip Technology

Product Category :

Microcontrollers

ROM (words) :

1048576

Terminal Form :

Ball

RoHS Status :

RoHS Compliant

RAM Size :

256KB

Oscillator Type :

External

Has ADC :

No

Peripherals :

WDT

Memory Size :

2MB

Max Supply Voltage :

3.6V

Min Supply Voltage :

2.7V

Interface :

EBI/EMI, UART, USART

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Core Architecture :

ARM

Supply Voltage :

1.8V

Data Bus Width :

32b

Height Seated (Max) :

1.2mm

Temperature Grade :

Industrial

Bit Size :

32

Min Operating Temperature :

-40°C

Qualification Status :

Not Qualified

PWM Channels :

No

Number of I/O :

32

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mount :

Surface Mount

Address Bus Width :

24

Terminal Position :

BOTTOM

Memory Type :

Flash

Pin Count :

121

Package / Case :

TFBGA

Max Operating Temperature :

85°C

Frequency (Max) :

75MHz

Length :

10mm

Terminal Finish :

Copper (Cu)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Programmable I/O :

32

Number of Pins :

121

Frequency :

75MHz

Number of Terminations :

121

Number of Timers/Counters :

3

RAM (bytes) :

262144

Terminal Pitch :

0.8mm

DAC Channels :

No

DMA Channels :

No
