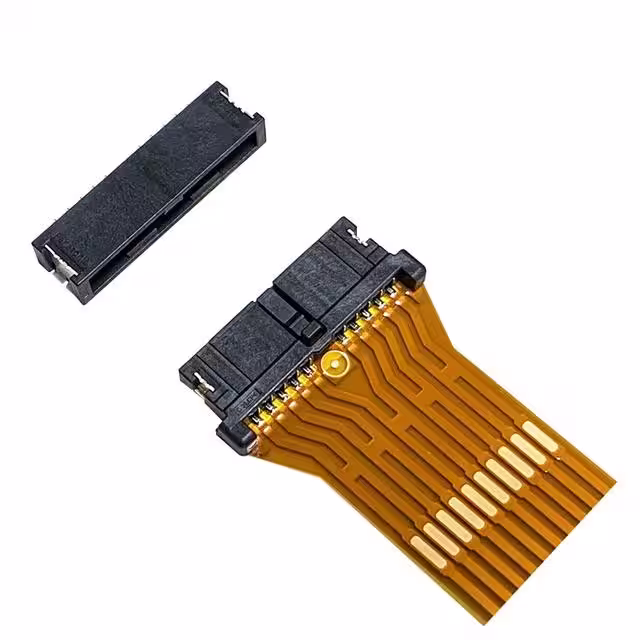

AYC2F0610
Or copy the link below:
- Mfr.Part #
- AYC2F0610
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- CONN BOARD TO FPC 6 POS PLUG
- Stock
- 1,684
- In Stock ：
- 1,684
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Product :
- Connectors
- Features :
- Solder Retention
- Product Category :
- Automotive Connectors
- Product Status :
- Active
- Flat Flex Type :
- FPC
- Package :
- Digi-Reel?
- Color :
- Black
- Mating Cycles :
- 10
- Packaging :
- MouseReel
- Manufacturer :
- Panasonic
- Product Type :
- Automotive Connectors
- Number of Positions :
- 6
- Contact Finish Thickness :
- -
- Material Flammability Rating :
- UL94 V-0
- Subcategory :
- Automotive Connectors
- Actuator Color :
- -
- RoHS :
- Details
- Locking Feature :
- -
- Operating Temperature :
- -40°C ~ 125°C
- FFC, FCB Thickness :
- -
- Housing Color :
- Black
- Maximum Operating Temperature :
- + 125 C
- Flammability Rating :
- UL 94 V-0
- Insulation Resistance :
- 100 MOhms
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Current Rating (Amps) :
- 2A per Contact
- Actuator Material :
- -
- Minimum Operating Temperature :
- - 40 C
- Contact Material :
- COPPER ALLOY
- Current Rating :
- 2 A
- Mounting Type :
- Surface Mount, Right Angle
- Contact Finish :
- Tin
- Connector/Contact Type :
- Contacts, Top and Bottom
- Height Above Board :
- 0.205" (5.20mm)
- Brand :
- Panasonic Industrial Devices
- Termination :
- Solder
- Cable End Type :
- -
- Pitch :
- 0.087" (2.20mm)
- Series :
- CF1
- Voltage Rating :
- 50V
- Contact Plating :
- Tin
- Datasheets
- AYC2F0610
CF1 Series FPC Contacts, Top and Bottom MouseReel 0.087" (2.20mm) Solder 6 Positions Surface Mount, Right Angle Tin -40°C ~ 125°C 2A per Contact
AYC2F0610 Overview
The device's mounting type is Surface Mount, Right Angle.In order to package the product, a MouseReel case is used.It belongs to the CF1 Series of products.The device runs in -40°C ~ 125°C Operating Temperature.
AYC2F0610 Features
CF1 series
AYC2F0610 Applications
There are a lot of Panasonic Electric Works
AYC2F0610 FFC, FPC (Flat Flexible) Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
