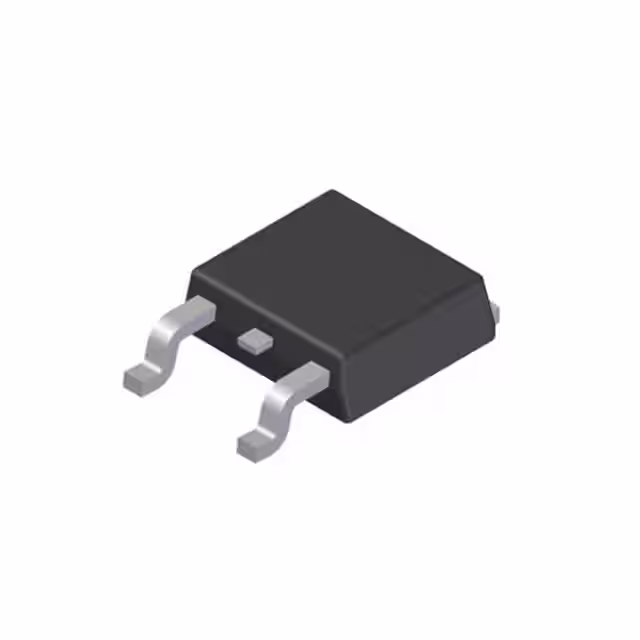

AZ2940D-2.5E1

Manufacturer :

Diodes Incorporated

Product Category :

Voltage Regulators - Linear

Protection Features :

Over Current, Over Temperature, Reverse Polarity

Terminal Pitch :

2.3 mm

Operating Temperature TJ-Max :

125 °C

JESD-609 Code :

e3

Manufacturer :

Diodes Incorporated

Terminal Form :

Gull wing

Output Current1-Max :

1 A

Control Features :

-

Output Type :

FIXED

Package Shape :

RECTANGULAR

Output Configuration :

Positive

Width :

5.8 mm

Current - Quiescent (Iq) :

25 mA

Current - Output :

1A

Surface Mount :

yes

Voltage - Input (Max) :

13.2V

Package :

Tube

Adjustability :

FIXED

Technology :

Bipolar

Qualification Status :

Not Qualified

Pin Count :

4

Voltage Tolerance-Max :

2%

Mounting Type :

Surface Mount

Output Voltage1-Nom :

2.5 V

JESD-30 Code :

R-PSSO-G2

Number of Terminals :

2

Packing Method :

Tube

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Dropout Voltage1-Nom :

0.28 V

Supplier Device Package :

TO-252-3

HTS Code :

8542.39.00.01

PSRR :

-

Dropout Voltage1-Max :

0.55 V

Series :

-

Length :

6.525 mm

Voltage - Output (Min/Fixed) :

2.5V

Product Status :

Obsolete

Seated Height-Max :

2.527 mm

Subcategory :

Other Regulators

Voltage Dropout (Max) :

0.55V @ 1A

Operating Temperature :

-40°C ~ 125°C (TJ)

Output Voltage1-Min :

2.45 V

ECCN Code :

EAR99

Package / Case :

TO-252-3, DPak (2 Leads + Tab), SC-63

Number of Outputs :

1

Input Voltage Absolute-Max :

16 V

Output Voltage1-Max :

2.55 V

Reach Compliance Code :

not_compliant

Operating Temperature TJ-Min :

-40 °C

Number of Regulators :

1

Current - Supply (Max) :

18 mA

Voltage - Output (Max) :

-

Terminal Position :

Single

Terminal Finish :

Matte Tin (Sn)

Number of Functions :

1
