AZ431AZ-BE1

Voltage Reference Diodes Incorporated AZ431AZ-BE1 Overview

Introducing the Voltage Reference Diodes Incorporated AZ431AZ-BE1, a high-performance adjustable shunt voltage reference IC that provides a reliable solution for precision voltage calibration. This IC, manufactured by Diodes Incorporated, offers exceptional temperature stability and low dynamic impedance, which are essential for maintaining consistent performance in critical applications. Its adjustable output voltage and tight 0.4% tolerance make it ideal for fine-tuning voltages in various electronic circuits, ensuring optimum performance across a wide range of operating conditions.

AZ431AZ-BE1 Features

• Adjustable Output Voltage: Allows fine-tuning from Vref to 36V, accommodating a broad spectrum of applications.
• Precision Tolerance: At 0.4%, the device ensures high accuracy in voltage reference settings, crucial for sensitive electronic components.
• Low Dynamic Impedance: Ensures minimal variation in output impedance with varying current, providing stable performance.

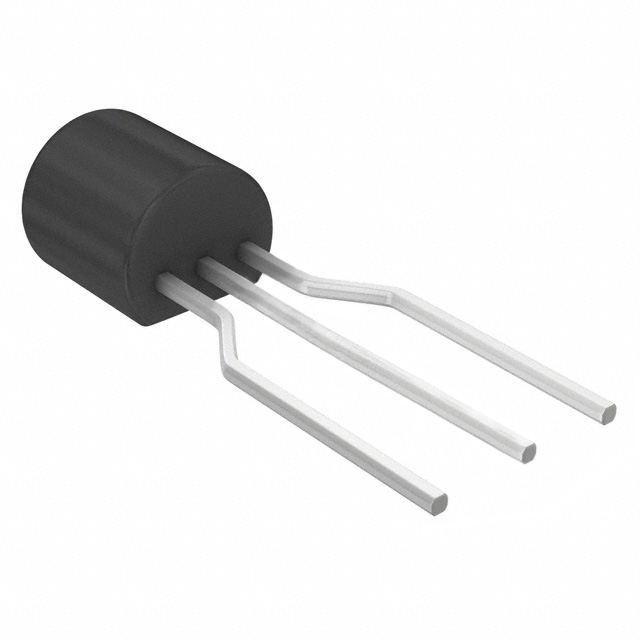

• TO92 Package: Compact and robust package suitable for through-hole mounting, simplifying the design and manufacturing process.

AZ431AZ-BE1 Applications

• Power Supplies: Acts as a precision reference to regulate various output voltages, enhancing power supply reliability and efficiency.
• Battery Chargers: Utilized to precisely control the charging voltage, ensuring safe and efficient battery management.
• Data Acquisition Systems: Ensures accurate data measurement and conversion by stabilizing the reference voltage, critical for high precision instruments.
• Portable Devices: Provides stable voltage references in compact electronics, crucial for maintaining consistent operation despite battery voltage fluctuations.
