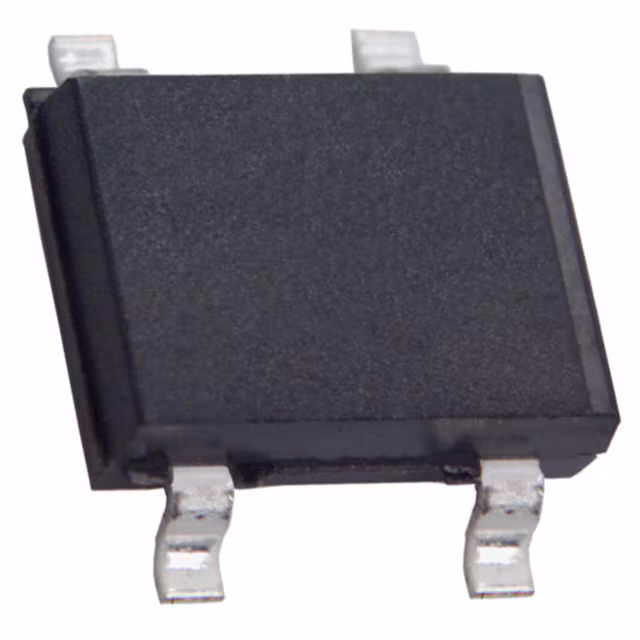

B106S_R2_00001

Manufacturer :

PANJIT

Product Category :

Diodes - Bridge Rectifiers

Supplier Device Package :

4-MDI

Current - Average Rectified (Io) :

1 A

Subcategory :

Diodes and Rectifiers

Number of Phases :

1

Diode Type :

BRIDGE RECTIFIER DIODE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Form :

Gull wing

Brand :

Panjit

JESD-30 Code :

R-PDSO-G4

Reach Compliance Code :

Compliant

Series :

B1005S

Voltage - Forward (Vf) (Max) @ If :

1.1 V @ 1 A

Configuration :

BRIDGE, 4 ELEMENTS

Packaging :

MouseReel

Surface Mount :

yes

Voltage - Peak Reverse (Max) :

600 V

Output Current-Max :

1 A

Mounting Type :

Surface Mount

Breakdown Voltage-Min :

600 V

Product Status :

Active

Technology :

Standard

Number of Elements :

4

Rep Pk Reverse Voltage-Max :

600 V

Operating Temperature :

-55°C ~ 150°C (TJ)

Number of Terminals :

4

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Diode Element Material :

SILICON

Terminal Position :

Dual

Package / Case :

4-SMD, Gull Wing

ECCN Code :

EAR99

Product Type :

Bridge Rectifiers

Package Shape :

RECTANGULAR

Current - Reverse Leakage @ Vr :

5 µA @ 600 V

Product Category :

Bridge Rectifiers

Non-rep Pk Forward Current-Max :

30 A
