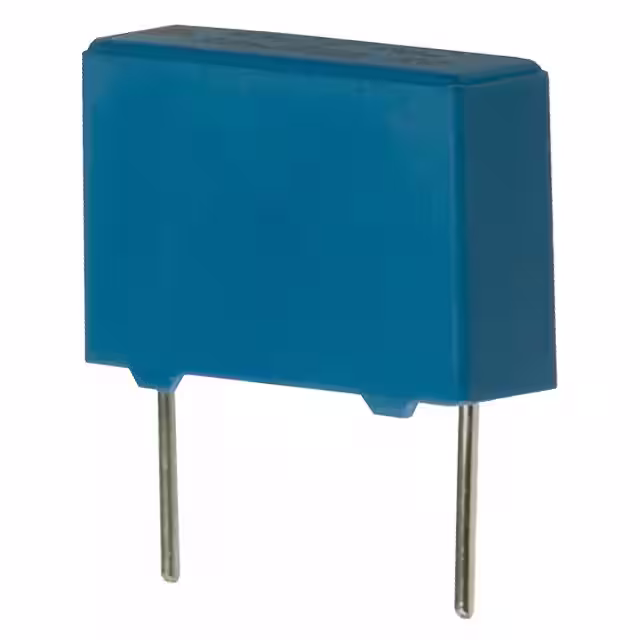

B32021A3222M289

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Applications :

EMI, RFI Suppression

Min Operating Temperature :

-40°C

Tolerance (+ or -) :

20%

Termination Style :

Radial

Product Depth (mm) :

4(mm)

Product Length (mm) :

13(mm)

Dielectric :

PP

Radiation Hardening :

No

Number of Pins :

2

Packing Method :

Ammo Pack

Number of Terminations :

2

Suppression Class :

Y2

Lead Spacing (nom) :

10(mm)

Voltage :

1500VDC/300VAC

Lead/Base Style :

Straight

Seated Plane Height :

9(mm)

Terminal Shape :

Wire

Construction :

Radial

Temp Coeff (Dielectric) :

PP

Termination :

PC Pins

Operating Temp Range :

-40C to 110C

Pbfree Code :

yes

Size / Dimension :

0.512 L x 0.157 W (13.00mm x 4.00mm)

ECCN Code :

EAR99

Rad Hardened :

No

Lead Pitch :

10mm

Product Diameter (mm) :

Not Required(mm)

Type :

EMI Suppression

Features :

--

RoHS Status :

RoHS Compliant

Tolerance :

20%

Capacitance :

2.2nF

Mounting Style :

Through Hole

Voltage - Rated AC :

300V

Depth :

4mm

Lead Diameter (nom) :

0.6(mm)

Lead Diameter :

600 µm

Series :

B32021

Moisture Sensitivity Level (MSL) :

--

Capacitor Type :

FILM CAPACITOR

Mounting Type :

Through Hole

Mount :

Through Hole

Height - Seated (Max) :

0.354 (9.00mm)

Voltage - Rated DC :

1.5kV

Size (mm) :

13 X 4 X 9

Operating Temperature :

-40°C ~ 110°C

Max Operating Temperature :

110°C

Failure Rate :

Not Required

Package / Case :

Radial

Packaging :

Cut Tape (CT)

JESD-609 Code :

e3

Height Seated (Max) :

8.9916mm

Dielectric Material :

Polypropylene

Voltage Rating - DC :

1500V (1.5kV)

Rated (DC) Voltage (URdc) :

1500V

Length :

13mm

Voltage Rating - AC :

300V

Height :

9mm

Width :

3.9878mm

Lead Spacing :

0.394 (10.00mm)

Product Height (mm) :

9(mm)

Ratings :

Y2
