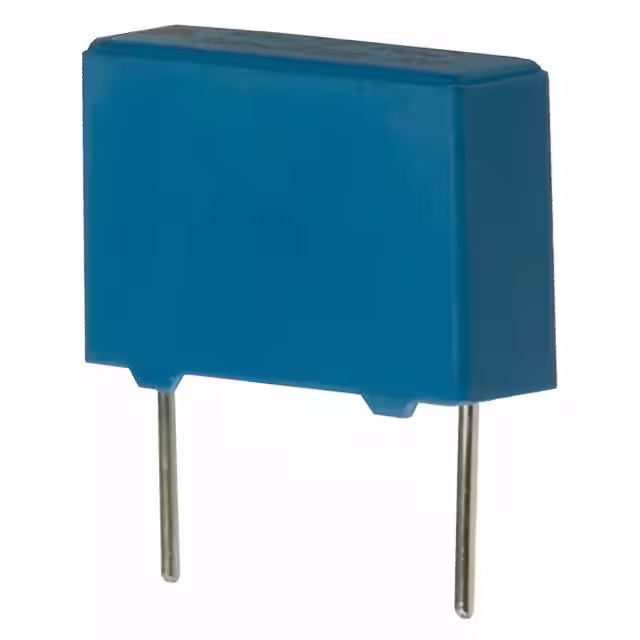

B32021A3332M289

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Lead Spacing :

0.394 (10.00mm)

Terminal Shape :

Wire

Tolerance :

20%

Operating Temperature :

-40°C ~ 110°C

Features :

--

Capacitor Type :

FILM CAPACITOR

Max Operating Temperature :

110°C

Applications :

EMI, RFI Suppression

Number of Pins :

2

Pbfree Code :

yes

Number of Terminations :

2

Length :

13mm

Min Operating Temperature :

-40°C

Radiation Hardening :

No

Voltage - Rated DC :

1.5kV

Height - Seated (Max) :

0.354 (9.00mm)

Termination :

PC Pins

Height :

9mm

Package / Case :

Radial

Lead Pitch :

10mm

Voltage Rating - AC :

300V

Ratings :

Y2

Height Seated (Max) :

8.9916mm

Size Code :

5116

Lead Free :

Lead Free

Lead Diameter :

600 µm

Dielectric Material :

Polypropylene

Packing Method :

Ammo Pack

Voltage - Rated AC :

300V

Size / Dimension :

0.512 L x 0.157 W (13.00mm x 4.00mm)

Voltage Rating - DC :

1500V (1.5kV)

Lead/Base Style :

Straight

Packaging :

Cut Tape (CT)

Dielectric :

PP

Series :

B32021

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

--

Capacitance :

3.3nF

Width :

3.9878mm

Depth :

4mm

Mount :

Through Hole

Rated (DC) Voltage (URdc) :

1500V

ECCN Code :

EAR99
