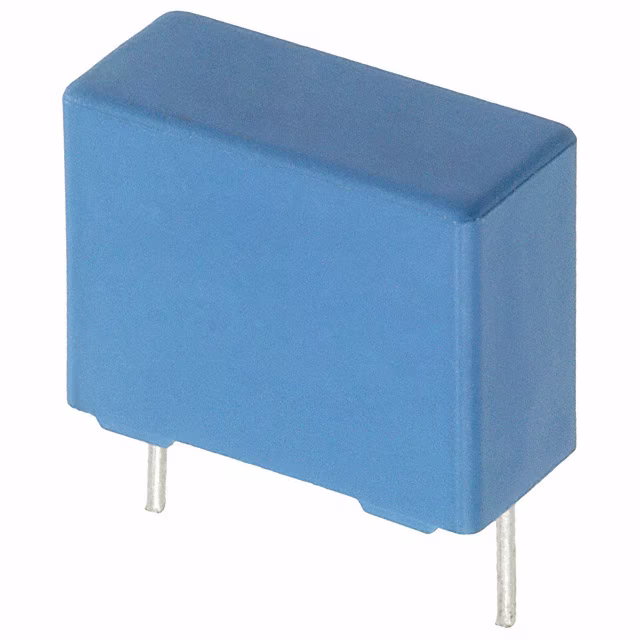

B32022A3563K000
Or copy the link below:
- Mfr.Part #
- B32022A3563K000
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.056UF 10% 1.5KVDC RAD
- Stock
- 16,510
- In Stock ：
- 16,510
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Height - Seated (Max) :
- 0.689 (17.50mm)
- Series :
- B32022
- Height :
- 9mm
- RoHS Status :
- RoHS Compliant
- Terminal Shape :
- Wire
- Package / Case :
- Radial
- Contact Plating :
- Tin
- Min Operating Temperature :
- -40°C
- Size Code :
- 7135
- Features :
- --
- Tolerance :
- 10%
- Size / Dimension :
- 0.709 L x 0.354 W (18.00mm x 9.00mm)
- Lead Spacing :
- 0.591 (15.00mm)
- Width :
- 17.5mm
- Lead Pitch :
- 15mm
- Moisture Sensitivity Level (MSL) :
- --
- JESD-609 Code :
- e3
- Lead Diameter :
- 800 µm
- Voltage - Rated AC :
- 300V
- Dielectric Material :
- Polypropylene (PP), Metallized
- Capacitor Type :
- FILM CAPACITOR
- Termination :
- PC Pins
- Length :
- 18mm
- Rated (DC) Voltage (URdc) :
- 1500V
- Lead/Base Style :
- Straight
- Ratings :
- Y2
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- Mount :
- Through Hole
- Voltage - Rated DC :
- 1.5kV
- Voltage Rating - DC :
- 1500V (1.5kV)
- Capacitance :
- 56nF
- Max Operating Temperature :
- 110°C
- Voltage Rating - AC :
- 300V
- Pbfree Code :
- yes
- Applications :
- EMI, RFI Suppression
- Depth :
- 9mm
- ECCN Code :
- EAR99
- Number of Terminations :
- 2
- Mounting Type :
- Through Hole
- Number of Pins :
- 2
- Packaging :
- Bulk
- Dielectric :
- PP
- Operating Temperature :
- -40°C ~ 110°C
- Datasheets
- B32022A3563K000
B32022 56nF Film Capacitor 10% Radial PC Pins 1.5kV-DC 300V-AC Polypropylene (PP), Metallized Through Hole
B32022A3563K000 Overview
To work properly, systems need a rated (DC) voltage of 1500V.Electrical devices such as this have a lead spacing of 0.591 (15.00mm).In addition to operating at -40°C ~ 110°C degrees, the device is capable of operating at other temperatures as well.
B32022A3563K000 Features
a rated (DC) voltage (URdc) of 1500V
B32022A3563K000 Applications
There are a lot of EPCOS
B32022A3563K000 applications of film capacitors.
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
- Switch mode power supplies
