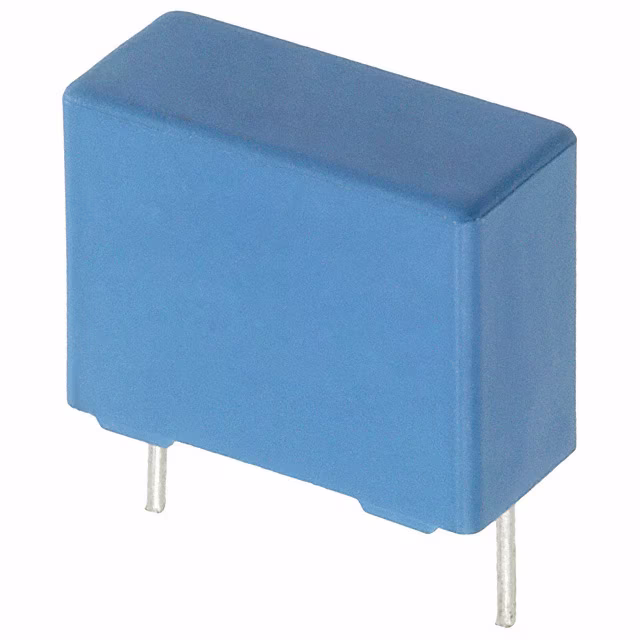

B32022A3563M000
Or copy the link below:
- Mfr.Part #
- B32022A3563M000
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.056UF 20% 1.5KVDC RAD
- Stock
- 49,939
- In Stock ：
- 49,939
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Height :
- 17.5mm
- Number of Terminations :
- 2
- Package / Case :
- Radial
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- Min Operating Temperature :
- -40°C
- Capacitance :
- 56nF
- Tolerance :
- 20%
- JESD-609 Code :
- e3
- Packaging :
- Bulk
- Additional Feature :
- RATED AC VOLTAGE(V): 300, SAFETY CLASS Y2
- ECCN Code :
- EAR99
- Size Code :
- 7135
- Capacitor Type :
- FILM CAPACITOR
- Mount :
- Through Hole
- Contact Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Terminal Shape :
- Wire
- Pbfree Code :
- yes
- HTS Code :
- 8532.25.00.70
- Rated (AC) Voltage (URac) :
- 300V
- Max Operating Temperature :
- 110°C
- Lead Diameter :
- 800 µm
- Lead Pitch :
- 15mm
- Dielectric :
- PP
- Depth :
- 9mm
- Rated (DC) Voltage (URdc) :
- 1500V
- Length :
- 18mm
- Datasheets
- B32022A3563M000
56nF Film Capacitor 20% Radial Through Hole
B32022A3563M000 Overview
An internal (DC) voltage of 1500V is required for systems to function.In order for systems to be powered, a constant (AC) voltage (URac) is required.
B32022A3563M000 Features
a rated (DC) voltage (URdc) of 1500V
an internal rated (AC) voltage (URac) of 300V
B32022A3563M000 Applications
There are a lot of EPCOS
B32022A3563M000 applications of film capacitors.
- Bypassing
- RFI for automotive
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
