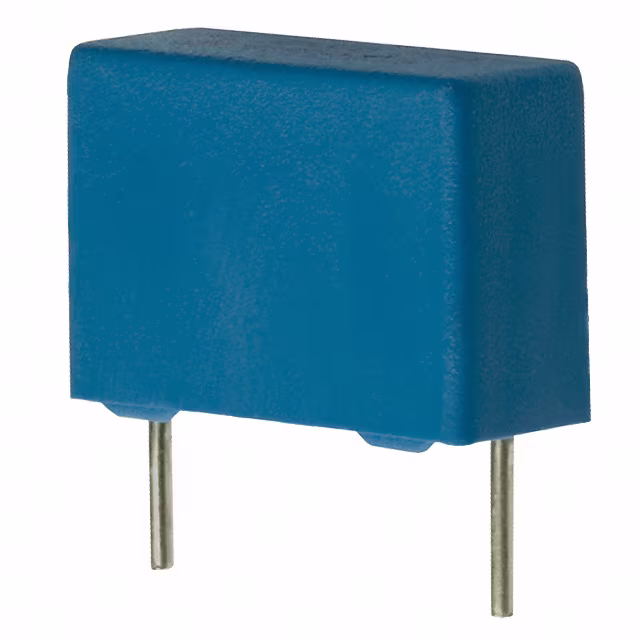

B32652A2222J189
Or copy the link below:
- Mfr.Part #
- B32652A2222J189
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 2200PF 5% 2KVDC RADIAL
- Stock
- 18,758
- In Stock ：
- 18,758
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Package / Case :
- Radial
- ECCN Code :
- EAR99
- Height :
- 12.5mm
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 100°C
- Length :
- 18mm
- Height Seated (Max) :
- 12.4968mm
- Capacitor Type :
- FILM CAPACITOR
- Height - Seated (Max) :
- 0.492 (12.50mm)
- Ratings :
- --
- Number of Terminations :
- 2
- Voltage Rating - AC :
- 700V
- Width :
- 7.0104mm
- Packaging :
- Tape and Reel (TR)
- Packing Method :
- TR
- Operating Temperature :
- -55°C ~ 100°C
- Contact Plating :
- Tin
- Capacitance :
- 2.2nF
- Applications :
- DC Link, DC Filtering; High Pulse, DV/DT; Snubber
- Dielectric :
- PP
- Pbfree Code :
- yes
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- Series :
- B32652
- Voltage - Rated AC :
- 700V
- Dielectric Material :
- Polypropylene
- Features :
- --
- Mounting Type :
- Through Hole
- Voltage Rating - DC :
- 2000V (2kV)
- HTS Code :
- 8532.25.00.70
- Lead Diameter :
- 800 µm
- Size Code :
- 7128
- Lead Pitch :
- 15mm
- Mount :
- Through Hole
- Lead Spacing :
- 0.591 (15.00mm)
- Voltage - Rated DC :
- 2kV
- Additional Feature :
- RATED AC VOLTAGE (V): 700
- Depth :
- 7mm
- Size / Dimension :
- 0.709 L x 0.276 W (18.00mm x 7.00mm)
- Min Operating Temperature :
- -55°C
- Termination :
- PC Pins
- JESD-609 Code :
- e3
- Terminal Shape :
- Wire
- Moisture Sensitivity Level (MSL) :
- --
- Tolerance :
- 5%
- Rated (DC) Voltage (URdc) :
- 2000V
- Datasheets
- B32652A2222J189
B32652 2.2nF Film Capacitor 5% Radial PC Pins 2kV-DC 700V-AC Polypropylene Through Hole
B32652A2222J189 Overview
To work properly, systems need a rated (DC) voltage of 2000V.Electrical devices such as this have a lead spacing of 0.591 (15.00mm).In addition to operating at -55°C ~ 100°C degrees, the device is capable of operating at other temperatures as well.
B32652A2222J189 Features
a rated (DC) voltage (URdc) of 2000V
B32652A2222J189 Applications
There are a lot of EPCOS
B32652A2222J189 applications of film capacitors.
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
- Switch mode power supplies
