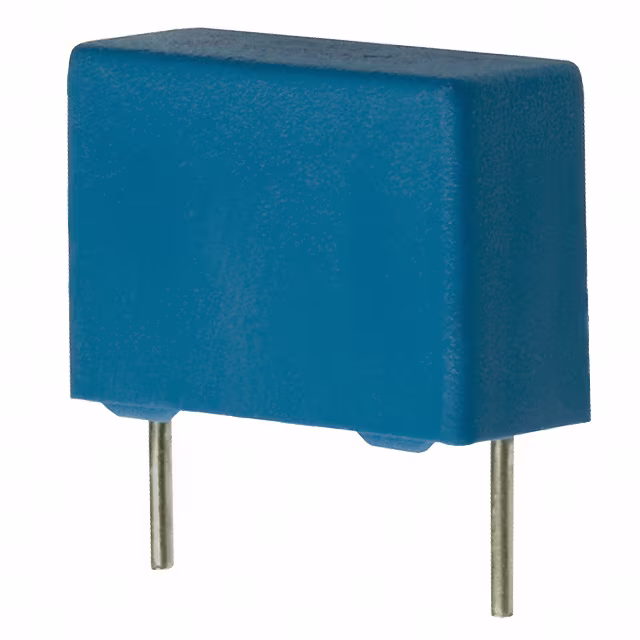

B32652A3684J289

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Lead Diameter :

800 µm

Contact Plating :

Tin

Capacitance :

680nF

ECCN Code :

EAR99

Operating Temperature :

-55°C ~ 100°C

Height - Seated (Max) :

0.295 (7.50mm)

Packing Method :

Ammo Pack

Lifecycle Status :

Production (Last Updated: 2 months ago)

Voltage - Rated DC :

250V

JESD-609 Code :

e3

Mount :

Through Hole

Voltage Rating - DC :

250V

Ratings :

--

Max Operating Temperature :

100°C

RoHS Status :

RoHS Compliant

Voltage Rating - AC :

160V

HTS Code :

8532.25.00.70

Height Seated (Max) :

7.493mm

Moisture Sensitivity Level (MSL) :

--

Lead Spacing :

0.591 (15.00mm)

Height :

17.5mm

Packaging :

Tape and Box (TB)

Dielectric :

PP

Dielectric Material :

Polypropylene

Features :

--

Min Operating Temperature :

-55°C

Depth :

9mm

Terminal Shape :

Wire

Package / Case :

Radial

Tolerance :

5%

Number of Terminations :

2

Additional Feature :

RATED AC VOLTAGE (V): 160

Applications :

DC Link, DC Filtering; High Pulse, DV/DT; Snubber

Pbfree Code :

yes

Voltage - Rated AC :

160V

Size Code :

7135

Mounting Type :

Through Hole

Size / Dimension :

0.709 L x 0.354 W (18.00mm x 9.00mm)

Lead Pitch :

15mm

Series :

B32652

Capacitor Type :

FILM CAPACITOR

Termination :

PC Pins

Width :

8.9916mm

Length :

18mm
