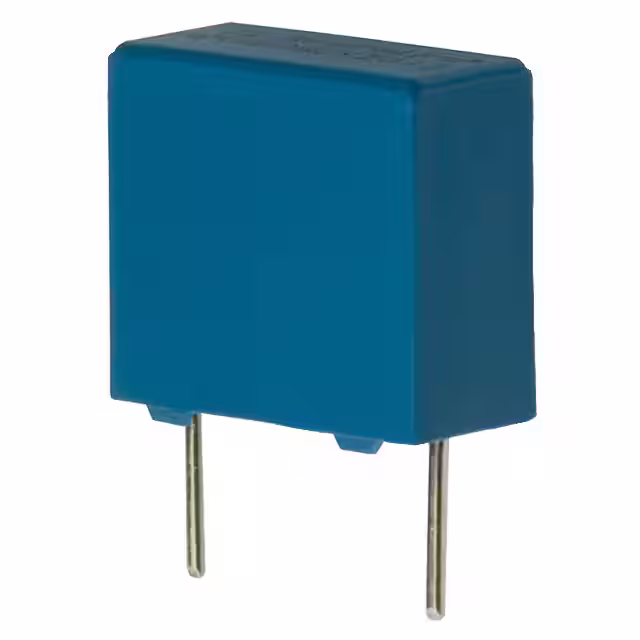

B32912A3683M289
Or copy the link below:
- Mfr.Part #
- B32912A3683M289
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.068UF 20% 760VDC RAD
- Stock
- 4,157
- In Stock ：
- 4,157
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Width :
- 5.9944mm
- ECCN Code :
- EAR99
- Packing Method :
- Ammo Pack
- Mounting Type :
- Through Hole
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- Features :
- --
- Packaging :
- Tape and Box (TB)
- Depth :
- 6mm
- Lead Spacing :
- 0.591 (15.00mm)
- Dielectric Material :
- Polypropylene
- Capacitor Type :
- FILM CAPACITOR
- Additional Feature :
- RATED AC VOLTAGE(V) : 330, SAFETY CLASS X1
- Capacitance :
- 68nF
- JESD-609 Code :
- e3
- Pbfree Code :
- yes
- Size / Dimension :
- 0.709 L x 0.236 W (18.00mm x 6.00mm)
- Terminal Shape :
- Wire
- Lead Diameter :
- 800 µm
- Contact Plating :
- Tin
- Number of Terminations :
- 2
- Min Operating Temperature :
- -40°C
- Ratings :
- X1
- Voltage - Rated DC :
- 760V
- Termination :
- PC Pins
- Length :
- 18mm
- Dielectric :
- PP
- Height - Seated (Max) :
- 0.433 (11.00mm)
- Size Code :
- 7124
- Lead Pitch :
- 15mm
- RoHS Status :
- RoHS Compliant
- Reference Standard :
- IEC60384-14
- Height :
- 11mm
- Operating Temperature :
- -40°C ~ 110°C
- Series :
- B32912
- HTS Code :
- 8532.25.00.70
- Package / Case :
- Radial
- Voltage - Rated AC :
- 330V
- Voltage Rating - DC :
- 760V
- Tolerance :
- 20%
- Voltage Rating - AC :
- 330V
- Max Operating Temperature :
- 110°C
- Moisture Sensitivity Level (MSL) :
- --
- Height Seated (Max) :
- 10.9982mm
- Mount :
- Through Hole
- Applications :
- EMI, RFI Suppression
- Datasheets
- B32912A3683M289
B32912 68nF Film Capacitor 20% Radial PC Pins 760V-DC 330V-AC Polypropylene Through Hole
B32912A3683M289 Overview
Lead spacing is 0.591 (15.00mm) for this electrical device.Devices with a -40°C ~ 110°C temperature capability can be operated.
B32912A3683M289 Features
B32912A3683M289 Applications
There are a lot of EPCOS
B32912A3683M289 applications of film capacitors.
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
