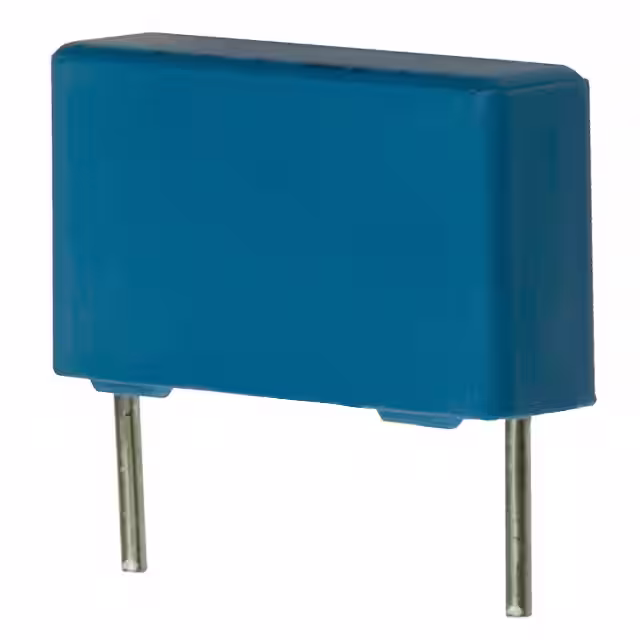

B32922C3473M189

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Package / Case :

Radial

Height Seated (Max) :

10.4902mm

Size / Dimension :

0.709 L x 0.197 W (18.00mm x 5.00mm)

Voltage - Rated AC :

305V

Lead Pitch :

15mm

Tolerance :

20%

Capacitance :

47nF

Lead Diameter :

800 µm

Length :

18mm

Voltage - Rated DC :

630V

ECCN Code :

EAR99

Max Operating Temperature :

110°C

Applications :

EMI, RFI Suppression

Number of Terminations :

2

HTS Code :

8532.25.00.70

Height :

10.5mm

Dielectric :

PP

Radiation Hardening :

No

Terminal Shape :

Wire

Lead Spacing :

0.591 (15.00mm)

Operating Temperature :

-40°C ~ 110°C

Packing Method :

TR

Voltage Rating - DC :

--

Features :

--

Min Operating Temperature :

-40°C

Dielectric Material :

Polypropylene

Series :

B32922

Additional Feature :

RATED AC VOLTAGE (V): 305, SAFETY CLASS X2

Height - Seated (Max) :

0.413 (10.50mm)

JESD-609 Code :

e3

Termination :

PC Pins

Pbfree Code :

yes

Depth :

5mm

Ratings :

X2

Voltage Rating - AC :

305V

Capacitor Type :

FILM CAPACITOR

Packaging :

Cut Tape (CT)

Mounting Type :

Through Hole

Width :

5.0038mm

RoHS Status :

RoHS Compliant

Reference Standard :

IEC60384-14

Moisture Sensitivity Level (MSL) :

--
