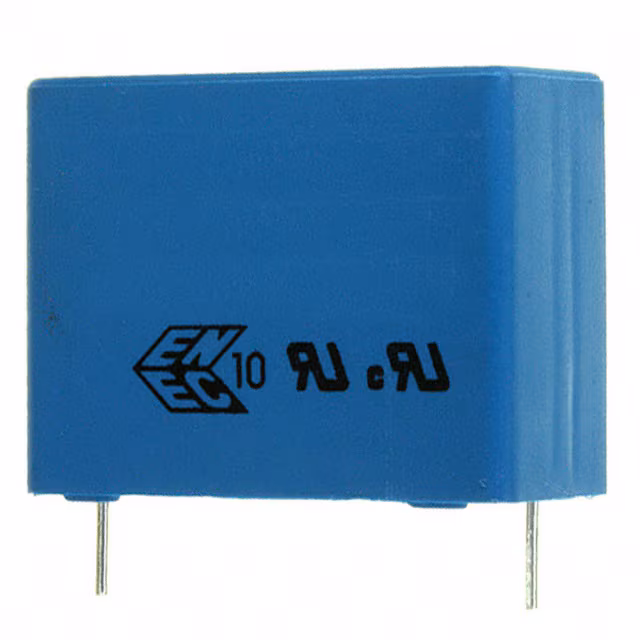

B32924E3335M

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Height :

24.5mm

Height Seated (Max) :

24.511mm

Height - Seated (Max) :

0.965 (24.50mm)

Length :

31.5mm

Series :

B32924

Min Operating Temperature :

-40°C

REACH SVHC :

No SVHC

JESD-609 Code :

e3

Lead Spacing :

1.083 (27.50mm)

Capacitor Type :

FILM CAPACITOR

Custom Capabilities :

Other Lead Lengths Available On Request

Features :

--

Voltage - Rated AC :

305V

Dielectric :

PP

Terminal Shape :

Wire

Tolerance :

20%

Applications :

EMI, RFI Suppression

Operating Temperature :

-40°C ~ 110°C

RoHS Status :

RoHS Compliant

Radiation Hardening :

No

Max Operating Temperature :

110°C

Terminal Finish :

Matte Tin (Sn)

Depth :

14mm

Voltage Rating - DC :

--

Package / Case :

Radial

Width :

13.9954mm

Packaging :

Bulk

Ratings :

X2

Voltage - Rated DC :

500V

Mounting Type :

Through Hole

Mount :

PCB, Through Hole

Capacitance :

3.3μF

Lead Pitch :

27.5mm

Reference Standard :

IEC60384-14

Dielectric Material :

Polypropylene

Moisture Sensitivity Level (MSL) :

--

Number of Terminations :

2

Number of Pins :

2

Lead Diameter :

800 µm

Size / Dimension :

1.240 L x 0.551 W (31.50mm x 14.00mm)

Termination :

PC Pins

Voltage Rating - AC :

305V

ECCN Code :

EAR99
