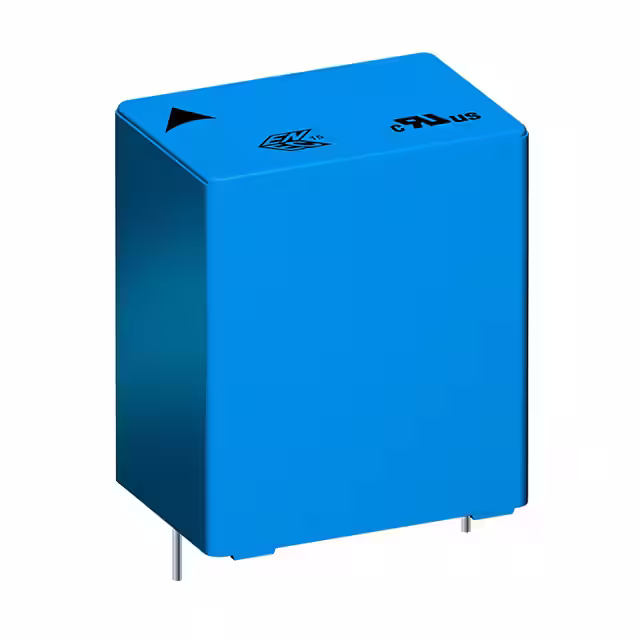

B32926E3685M

Manufacturer :

EPCOS (TDK)

Product Category :

Film Capacitors

Series :

B32926

Height - Seated (Max) :

1.280 (32.50mm)

Lead Diameter :

1 mm

Lead Pitch :

37.5mm

Moisture Sensitivity Level (MSL) :

--

Applications :

EMI, RFI Suppression

Features :

--

Tolerance :

20%

Ratings :

X2

Length :

42.0116mm

Mounting Type :

Through Hole

Number of Terminations :

2

Lead Spacing :

1.476 (37.50mm)

Size / Dimension :

1.654 L x 0.709 W (42.00mm x 18.00mm)

Voltage Rating - DC :

--

Dielectric Material :

Polypropylene

Terminal Shape :

Wire

Max Operating Temperature :

110°C

Dielectric :

PP

Reference Standard :

IEC60384-14

Height Seated (Max) :

32.512mm

Radiation Hardening :

No

Operating Temperature :

-40°C ~ 110°C

Custom Capabilities :

Other Lead Lengths Available On Request

Termination :

PC Pins

Mount :

PCB, Through Hole

Voltage Rating - AC :

305V

Package / Case :

Radial

Height :

32.5mm

Depth :

18mm

Width :

18.0086mm

Capacitance :

6.8μF

ECCN Code :

EAR99

JESD-609 Code :

e3

REACH SVHC :

No SVHC

Number of Pins :

2

RoHS Status :

RoHS Compliant

Capacitor Type :

FILM CAPACITOR

Voltage - Rated AC :

305V

Terminal Finish :

Matte Tin (Sn)

Packaging :

Bulk

Min Operating Temperature :

-40°C

Voltage - Rated DC :

500V
