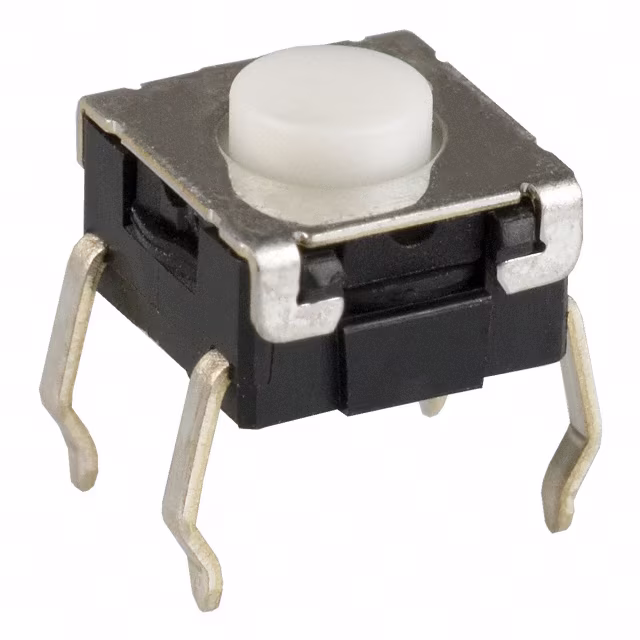

B3W-1000S

Manufacturer :

Omron Electronic Components

Product Category :

Switch Type :

KEYPAD SWITCH

Contact Voltage(DC)-Max :

24 V

Mounting Feature :

THROUGH HOLE-STRAIGHT

Actuator Color :

White

Contact Form :

SPST

Outline :

6.60mm x 6.00mm

Operating Force :

160gf

Brand :

Omron Electronics

Illumination Voltage (Nominal) :

-

Subcategory :

Switches

RoHS :

Details

Surface Mount :

No

Package :

Tube

Factory Lead Time :

10 Weeks

Width :

6 mm

HTS Code :

8536.50.90.40

Height :

4.3 mm

Product Status :

Active

Number of Switches :

1

Lamp Type :

-

Mounting Type :

Through Hole

Actuator Material :

-

Body Breadth :

6 mm

Contact Function :

OFF-(ON)

IP Rating :

IP67

Switch Travel :

-

Product :

Tactile Switches

Mounting Style :

Through Hole

Actuator :

Plunger

Mechanical Life :

1,000,000 Cycles

Actuator Length, Right Angle :

-

Circuit :

SPST-NO

Circuit Configuration :

1x1

Pbfree Code :

yes

Color :

White

ECCN Code :

EAR99

Product Type :

Tactile Switches

Power Rating :

-

Illumination Type, Color :

-

Travel :

0.25 mm

Body Height :

3.65 mm

Operating Temperature :

-25°C ~ 70°C

Insulation Resistance :

100000000 Ω

Features :

-

Contact Timing :

BREAK-BEFORE-MAKE

Actuator Length :

0.026 inch

Operating Temperature Range :

- 25 C to + 70 C

Body Length or Diameter :

6.6 mm

Additional Feature :

STICK PACKAGING

Termination Style :

PC Pin

Actuator Type :

Standard

Electrical Life :

1000000 Cycle(s)

PCB Hole Count :

4

Operating Force-Max :

1.57 N

Actuator Height off PCB, Vertical :

4.30mm

Contact Resistance :

0.1 mΩ

Current Rating :

50 mA

Switch Function :

Off-Mom

Contact Current(DC)-Max :

0.05 A

Illumination Color :

-

Termination Type :

Solder

Contact Rating @ Voltage :

0.05A @ 24VDC

Terminal Length :

0.138 inch

Minimum Operating Temperature :

- 25 C

Maximum Operating Temperature :

+ 70 C

Type :

Miniature

Packing Method :

Tube

Contact Bounce Time-Max :

5 ms

Length :

6 mm

Illumination :

Non-Illuminated

Series :

B3W

Manufacturer :

Omron

Reach Compliance Code :

Unknown

Product Category :

Tactile Switches

Actuator Orientation :

Top Actuated

Contact Plating :

Silver

Switch Action :

MOMENTARY-TACTILE

Ingress Protection :

IP67 - Dust Tight, Waterproof

Base Product Number :

B3W
