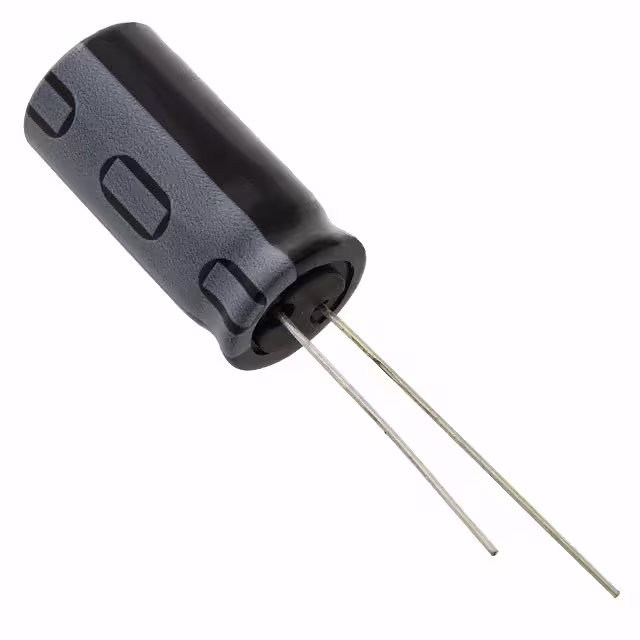

B41044A9227M

Manufacturer :

EPCOS (TDK)

Product Category :

Aluminum Electrolytic Capacitors

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Min Operating Temperature :

-40°C

Terminal Shape :

Wire

Lead Pitch :

7.5mm

Package / Case :

Radial

Life (Hours) :

5000 hours

ECCN Code :

EAR99

Length :

25mm

Height - Seated (Max) :

1.063 (27.00mm)

Lead Diameter :

800 µm

Packing Method :

Ammo Pack; Tape

Tan Delta :

0.08

Number of Terminations :

2

Diameter :

16mm

Max Operating Temperature :

105°C

Lead Spacing :

0.295 (7.50mm)

Tolerance :

20%

Polarity :

Polar

Height Seated (Max) :

27.0002mm

Height :

25mm

Impedance :

70mOhm

Capacitance :

220μF

RoHS Status :

RoHS Compliant

Surface Mount Land Size :

--

Ratings :

--

Packaging :

Bulk

Mount :

Through Hole

Pbfree Code :

yes

Ripple Current :

1.048A

Dielectric Material :

ALUMINUM (WET)

Voltage - Rated DC :

100V

Voltage - Rated :

100V

Lifetime @ Temp. :

5000 Hrs @ 105°C

Ripple Current @ High Frequency :

1.048A @ 100kHz

ESR (Equivalent Series Resistance) :

--

Applications :

GENERAL PURPOSE

Mounting Type :

Through Hole

Radiation Hardening :

No

Series :

B41044

Size / Dimension :

0.630 Dia (16.00mm)

Moisture Sensitivity Level (MSL) :

--

Polarization :

Polar

Operating Temperature :

--
