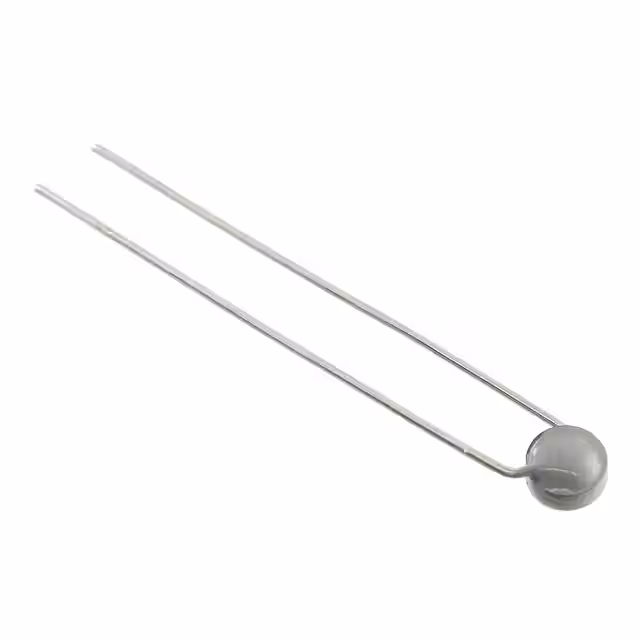

B57164K0101J052
Or copy the link below:
- Mfr.Part #
- B57164K0101J052
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- THERMISTOR NTC 100OHM 3200K DISC
- Stock
- 18,989
- In Stock ：
- 18,989
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Temperature Sensors - NTC Thermistors
- Operating Temperature :
- -55°C ~ 125°C
- B Value Tolerance :
- ±3%
- Tolerance :
- 5%
- B25/75 :
- --
- Length :
- 2mm
- Mounting Type :
- PCB, Through Hole
- B25/100 :
- 3200K
- Resistance :
- 100Ohm
- Depth :
- 5mm
- Termination :
- Radial
- B0/50 :
- --
- Lead Diameter :
- 600 µm
- Contact Plating :
- Tin
- Min Operating Temperature :
- -55°C
- Series :
- --
- B25/50 :
- --
- Packaging :
- Bulk
- Power - Max :
- 450mW
- Power Rating :
- 450mW
- B25/85 :
- --
- Diameter :
- 5.5mm
- Lead Pitch :
- 5mm
- Mount :
- Through Hole
- Max Operating Temperature :
- 125°C
- Resistance Tolerance :
- ±5%
- Length - Lead Wire :
- --
- RoHS Status :
- RoHS Compliant
- Resistance in Ohms @ 25°C :
- 100
- Package / Case :
- Radial
- Number of Pins :
- 2
- Datasheets
- B57164K0101J052
-- Series Tolerance:5% PCB, Through Hole -55°C ~ 125°C -- B Value Tolerance:±3% Bulk
B57164K0101J052 Overview
The package for NTC thermistors is a Bulk. As a convenience, it is included in the package Radial. Typical resistance tolerances for NTC thermistors are ±5%. The temperature setting of NTC thermistors should be set to -55°C ~ 125°C for reliable performance. Providing NTC thermistors with a maximum operating temperature of 125°C facilitates reliable operation. Thermistors can operate at -55°C for reliability. To make NTC thermistors work, the 2 pins must be connected. The NTC thermistors can set a maximum power of 450mW.
B57164K0101J052 Features
2 Pins
Package/Case: Bulk
-- Series
Operating Temperature: -55°C ~ 125°C
100Ohm Resistance
Mounting Type: PCB, Through Hole
5% Tolerance
B57164K0101J052 Applications
There are a lot of EPCOS
B57164K0101J052 NTC Thermistors applications.
- Temperature compensation for semiconductor devices
- Temperature detection for CPU and memory device
- Temperature compensation for ink-viscosity (Inkjet Printer)
- Temperature detection of battery cells
- Temperature compensation of display contrast
- Temperature compensation of display backlighting (CCFL)
- Personal Computer and Peripheral Device
- Personal Computer and Peripheral Device
- Liquid Crystal Display
- Temperature measurement and compensation
