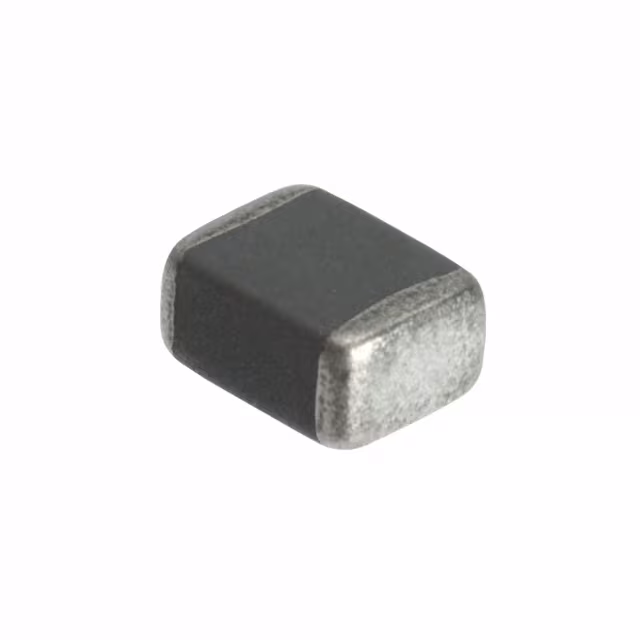

B59601A0085B062
Or copy the link below:
- Mfr.Part #
- B59601A0085B062
- Manufacturer
- EPCOS (TDK)
- Package / Case
- 0603
- Datasheet
- Download
- Description
- THERMISTOR PTC 470 OHM 50% 0603
- Stock
- 20,692
- In Stock ：
- 20,692
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Temperature Sensors - PTC Thermistors
- Depth :
- 800μm
- RoHS Status :
- RoHS Compliant
- Resistor Type :
- PTC THERMISTOR
- Number of Terminations :
- 2
- JESD-609 Code :
- e3
- Resistance :
- 470Ohm
- Lifecycle Status :
- Production (Last Updated: 1 month ago)
- Min Operating Temperature :
- -40°C
- Number of Pins :
- 2
- Terminal Placement :
- DUAL ENDED
- Pbfree Code :
- yes
- Additional Feature :
- 4.7 K OHMS AT 85 DEG CEL
- Terminal Shape :
- WRAPAROUND
- Mount :
- Surface Mount
- Packaging :
- Tape and Reel
- Max Operating Temperature :
- 125°C
- Package / Case :
- 0603
- Operating Supply Voltage :
- 32V
- Tolerance :
- 50%
- Contact Plating :
- Tin
- Length :
- 1.6mm
- Thermistor Application :
- TEMPERATURE SENSING
- Packing Method :
- TR, CARDBOARD, 7 INCH
- Datasheets
- B59601A0085B062
PTC THERMISTOR 470Ohm 50% TEMPERATURE SENSING 2-Pin WRAPAROUND Tape and Reel 0603
B59601A0085B062 Overview
Keeping PTC thermistors in 0603 packages prevents them from being damaged. Packaged in the Tape and Reel for safety, these PTC thermistors are designed to perform at high temperatures. Ensure that the PTC thermistors are set to -40°C as their minimum operating temperature. In order for this thermistor to work properly, the operating temperature must not exceed 125°C. PTC thermistors have terminations of 2. A thermistor like this has 2 pins. When operating, PTC thermistors could deliver a voltage of 32V.
B59601A0085B062 Features
Package / Case: 0603
Mount: Surface Mount
Terminal Shape: WRAPAROUND
2 Pins
Tolerance: 50%
B59601A0085B062 Applications
There are a lot of EPCOS
B59601A0085B062 PTC Thermistors applications.
- Display backlights
- Building automation
- Thermal threshold detection
- Motor control
- Chargers
- Thermal protection of winding in electric motors
- Secondary protection of battery packs
- Limit temperature monitoring
- Over-temperature protection of power components
- DC/DC converters
