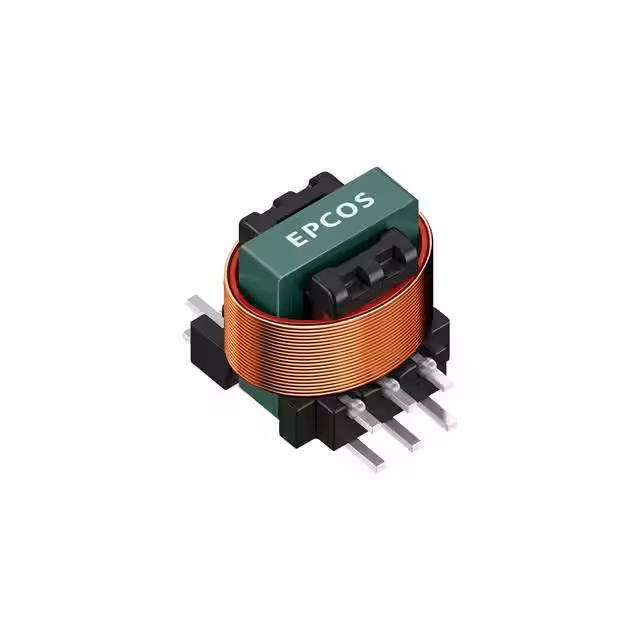

B78302A2401A003

Manufacturer :

EPCOS (TDK)

Product Category :

Switching Converter, SMPS Transformers

Inductance :

2 mH

Packaging :

MouseReel

Intended Chipset :

-

Applications :

-

Subcategory :

Transformers

Qualification :

AEC-Q200

Size / Dimension :

0.307 L x 0.264 W (7.80mm x 6.70mm)

Width :

6.7 mm

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Chipset Manufacturer :

-

Brand :

EPCOS / TDK

Product Status :

Active

Core Material :

Ferrite

Height :

7.9 mm

Termination Style :

SMD/SMT

Series :

E5

Operating Temperature :

-40°C ~ 125°C

Voltage - Auxiliary :

-

Voltage - Isolation :

-

Voltage - Primary :

-

Frequency Range :

50 kHz

Type :

SMT Transformers

Product Type :

Audio and Signal Transformers

Manufacturer :

EPCOS / TDK

Product Category :

Audio Transformers / Signal Transformers

Maximum Operating Temperature :

+ 125 C

Minimum Operating Temperature :

- 40 C

RoHS :

Details

Product :

Automotive

Frequency :

50kHz

Length :

6.7 mm

Height - Seated (Max) :

0.264 (6.70mm)

Shielding :

Unshielded

Style :

Wirewound

Footprint :

0.346 L x 0.264 W (8.80mm x 6.70mm)

Mounting Type :

Surface Mount

Inductance @ Frequency :

2mH @ 50kHz
