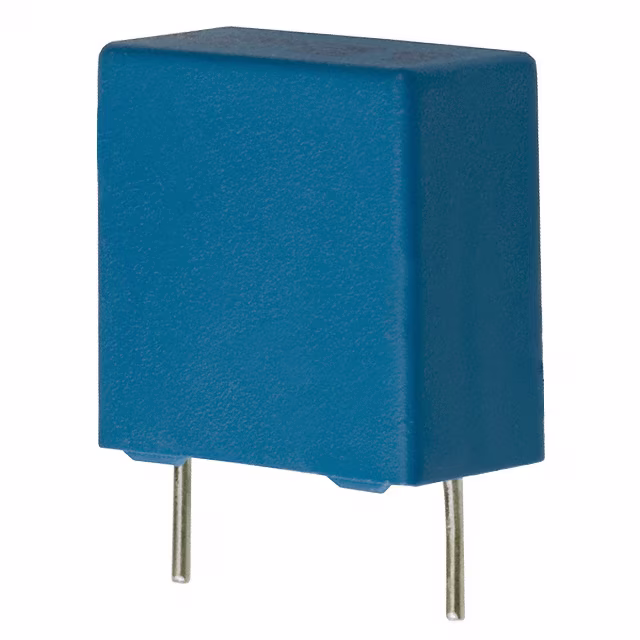

B81123C1152M289
Or copy the link below:
- Mfr.Part #
- B81123C1152M289
- Manufacturer
- EPCOS (TDK)
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 1500PF 20% 500VAC RAD
- Stock
- 5,623
- In Stock ：
- 5,623
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPCOS (TDK)
- Product Category :
- Film Capacitors
- Height - Seated (Max) :
- 0.433 (11.00mm)
- Mounting Feature :
- THROUGH HOLE MOUNT
- Ratings :
- Y1
- Packaging :
- Tape and Box (TB)
- Package / Case :
- Radial
- Min Operating Temperature :
- -40°C
- Surface Mount :
- No
- Lead Pitch :
- 15mm
- Pbfree Code :
- yes
- Tolerance :
- 20%
- HTS Code :
- 8532.25.00.70
- Operating Temperature :
- -40°C ~ 110°C
- Lead Diameter :
- 800 µm
- Terminal Finish :
- Matte Tin (Sn)
- Dielectric :
- PP
- Additional Feature :
- RATED AC VOLTAGE (V): 250; REFERENCE STANDARD: IEC60384-14, SAFETY CLASS Y1
- Applications :
- EMI, RFI Suppression
- Terminal Shape :
- Wire
- Capacitance :
- 1.5nF
- Number of Terminations :
- 2
- Max Operating Temperature :
- 100°C
- Depth :
- 6mm
- Lifecycle Status :
- Production (Last Updated: 2 months ago)
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- Size / Dimension :
- 0.709 L x 0.236 W (18.00mm x 6.00mm)
- Height :
- 11mm
- Capacitor Type :
- FILM CAPACITOR
- Voltage Rating - AC :
- 500V
- Packing Method :
- Ammo Pack
- Rated (DC) Voltage (URdc) :
- 3000V
- Moisture Sensitivity Level (MSL) :
- --
- JESD-609 Code :
- e3
- Rated (AC) Voltage (URac) :
- 250V
- RoHS Status :
- RoHS Compliant
- Series :
- B81123
- Length :
- 18mm
- Features :
- --
- Voltage Rating - DC :
- --
- Size Code :
- 7124
- Lead Spacing :
- 0.591 (15.00mm)
- Termination :
- PC Pins
- Dielectric Material :
- Polypropylene (PP), Metallized
- Datasheets
- B81123C1152M289
B81123 1.5nF Film Capacitor 20% Radial PC Pins Polypropylene (PP), Metallized
B81123C1152M289 Overview
The rated (DC) voltage (URdc) of systems should be 3000V.Electrical devices have 0.591 (15.00mm) lead spacing.To power systems, URac must be set at 250V V.Temperatures of -40°C ~ 110°C are suitable for operating the device.
B81123C1152M289 Features
a rated (DC) voltage (URdc) of 3000V
an internal rated (AC) voltage (URac) of 250V
B81123C1152M289 Applications
There are a lot of EPCOS
B81123C1152M289 applications of film capacitors.
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
