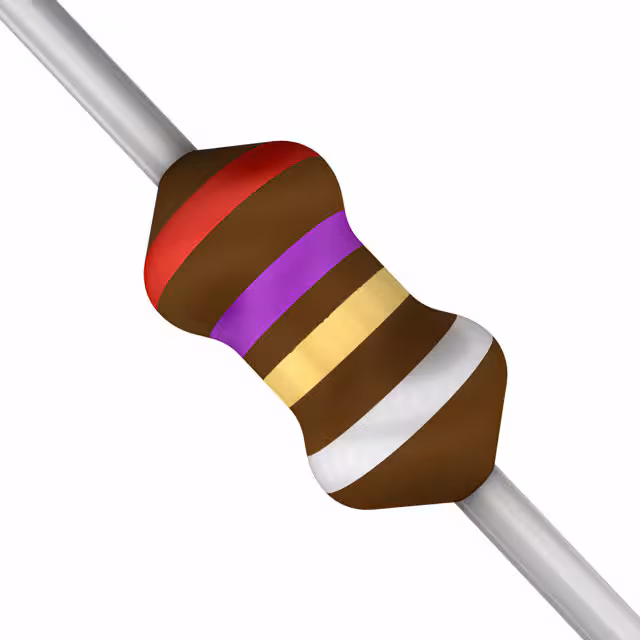

B82141A1272K009

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Military Standard :

Not

Test Frequency :

1MHz

Ratings :

-

Operating Temperature (Max) :

125°C

Number of Terminations :

2

Construction :

Tubular

Other Names :

B82141A1272K 9 B82141A1272K9 B82141A1272K9-ND

Number of Functions :

1

Inductor Application :

RF INDUCTOR

Inductance-Nom (L) :

2.7 µH

Shielding :

No

Inductance :

2.7 µH

Inductance Frequency - Test :

7.96MHz

Frequency - Self Resonant :

110MHz

Packaging :

Tape and Box (TB)

Quality Factor-Min (at L-nom) :

45

Series :

SBC

Pbfree Code :

yes

Shape/Size Description :

TUBULAR PACKAGE

Type :

Wirewound

Package / Case :

Axial

Mounting Type :

Through Hole

RoHS Status :

RoHS Compliant

Operating Temperature :

-55°C ~ 125°C

Height - Seated (Max) :

-

Size / Dimension :

0.118 Dia x 0.268 L (3.00mm x 6.80mm)

Lifecycle Status :

Production (Last Updated: 2 months ago)

DC Current :

610mA

Operating Temperature (Min) :

-55°C

Material - Core :

Ferrite

Special Feature :

Q IS MEASURED AT: 7.96 MHZ

Length :

9.8mm

DC Resistance (DCR) :

270 mOhm Max

Tolerance :

10%

Q @ Freq :

45 @ 7.96MHz

Packing Method :

Ammo Pack

Lead Diameter :

0.6 mm

Lead/Base Style :

Axial

HTS Code :

8504.50.80.00

Resistance :

270mOhm

ECCN Code :

EAR99

Terminal Shape :

Wire

Rated Current-Max :

0.61A

Surface Mount :

No

Supplier Device Package :

-

Current - Saturation :

-

Current Rating :

610mA

Inductor Type :

GENERAL PURPOSE INDUCTOR

DC Resistance (DCR) - Parallel :

320mOhm
