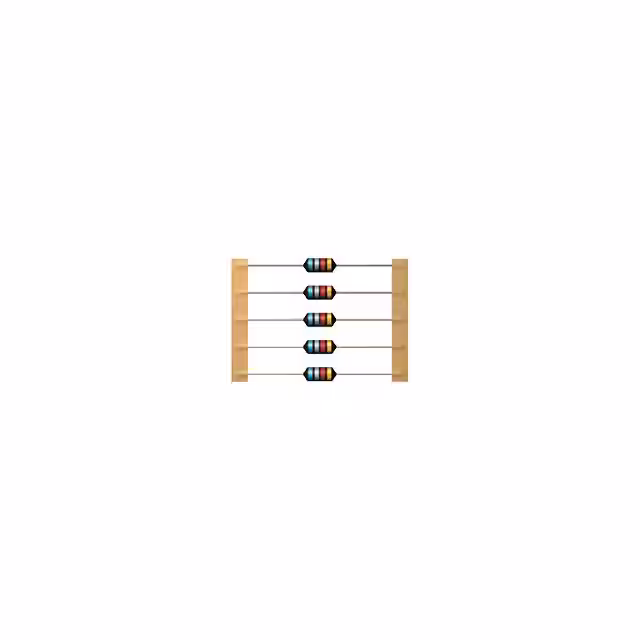

B82144A2103K009

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Number of Terminations :

2

Inductor Application :

RF INDUCTOR

Terminal Finish :

Matte Tin (Sn)

Tolerance :

10%

Test Frequency :

1MHz

Length :

14.8mm

Lead Diameter :

0.8 mm

Pbfree Code :

yes

Lifecycle Status :

Production (Last Updated: 2 months ago)

Inductance :

10 µH

HTS Code :

8504.50.80.00

RoHS Status :

RoHS Compliant

Number of Functions :

1

Packing Method :

Ammo Pack

Resistance :

220mOhm

Inductor Type :

GENERAL PURPOSE INDUCTOR

Frequency - Self Resonant :

60MHz

Material - Core :

Ferrite

Quality Factor-Min (at L-nom) :

60

Max Operating Temperature :

125°C

DC Resistance (DCR) - Parallel :

320mOhm

DC Current :

1.4A

Min Operating Temperature :

-55°C

ECCN Code :

EAR99

Terminal Shape :

Wire

Military Standard :

Not

Lead/Base Style :

Axial

Special Feature :

Q IS MEASUED AT 2.52MHZ

Surface Mount :

No

Shape/Size Description :

TUBULAR PACKAGE

Inductance-Nom (L) :

10 µH

JESD-609 Code :

e3
