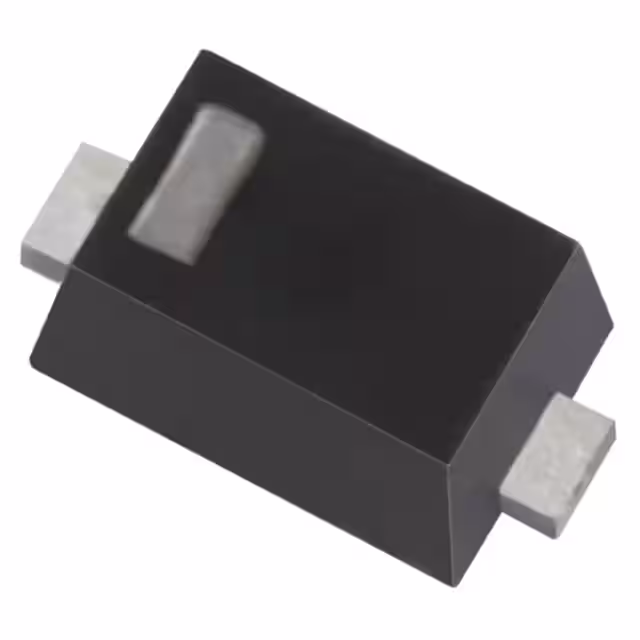

BAT54-02V-G3-08

Manufacturer :

Vishay

Product Category :

Diodes - Rectifiers - Single

Minimum Operating Temperature :

- 55 C

Operating Temperature - Junction :

125°C

Current - Average Rectified (Io) :

200mA

Package :

Digi-Reel?

Product Type :

Schottky Diodes and Rectifiers

Reverse Recovery Time (trr) :

5 ns

Capacitance @ Vr, F :

10pF @ 1V, 1MHz

Manufacturer :

Vishay

Diode Type :

Schottky

Mounting Type :

Surface Mount

Base Product Number :

BAT54

Vf - Forward Voltage :

800 mV

Series :

-

Mounting Style :

SMD/SMT

Packaging :

MouseReel

Product :

Schottky Diodes

Diode Configuration :

Single

Brand :

Vishay Semiconductors

Reverse Recovery Time :

5

Qualification :

-

Supplier Device Package :

SOD-523

Configuration :

Single

Product Status :

Active

RoHS :

Details

Package / Case :

SC-79, SOD-523

Product Category :

Schottky Diodes and Rectifiers

Subcategory :

Diodes and Rectifiers

Current - Reverse Leakage @ Vr :

2 µA @ 25 V

Speed :

Small Signal =< 200mA (Io), Any Speed

Voltage - DC Reverse (Vr) (Max) :

30 V

Voltage - Forward (Vf) (Max) @ If :

800 mV @ 100 mA

Maximum Operating Temperature :

+ 125 C

Repetitive Peak Reverse Voltage :

30
