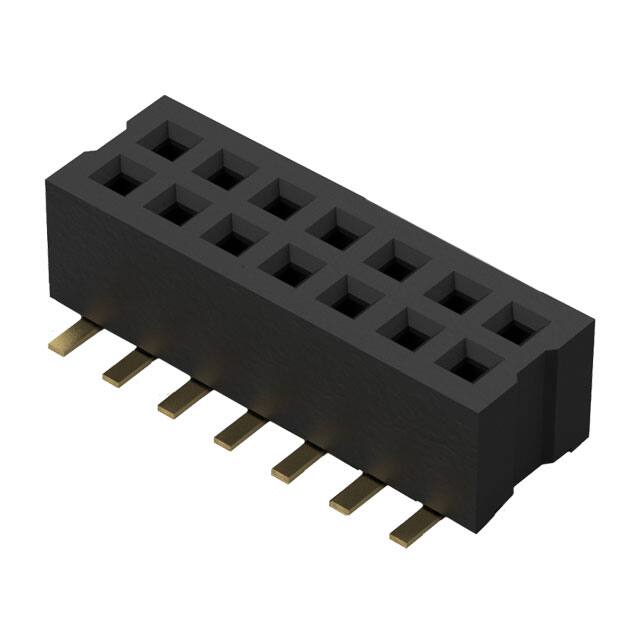

BC084-14-A-0390-L-C
Or copy the link below:
- Mfr.Part #
- BC084-14-A-0390-L-C
- Manufacturer
- GCT
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 14POS 0.039 GOLD SMD
- Stock
- 25
- In Stock ：
- 25
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- GCT
- Product Category :
- Headers, Receptacles, Female Sockets
- Mounting Style :
- Straight
- Contact Finish Termination :
- Gold (Au) - with Nickel (Ni) barrier
- Contact Finish - Mating :
- Gold
- Total Number of Contacts :
- 14
- Body Breadth :
- 0.098 inch
- Ingress Protection :
- -
- Contact Pattern :
- RECTANGULAR
- Termination Type :
- Surface Mount
- Contact Material :
- Phosphor Bronze
- Fastening Type :
- Push-Pull
- Contact Finish Thickness - Post :
- Flash
- Features :
- Board Guide
- Mounting Type :
- BOARD
- Number of Positions Loaded :
- All
- Number Of PCB Rows :
- 2
- Reference Standard :
- UL
- Mating Contact Pitch :
- 0.039 inch
- Current Rating (Amps) :
- 1A per Contact
- Insulation Color :
- Black
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Durability :
- 100 Cycles
- Withdrawl Force-Min :
- .1112 N
- Product Status :
- Active
- Plating Thickness :
- FLASH inch
- Terminal Pitch :
- 0.9906 mm
- Polarization Key :
- POLARIZED HOUSING
- PCB Contact Pattern :
- RECTANGULAR
- Mated Stacking Heights :
- -
- Contact Shape :
- Square
- Product Type :
- Headers and Wire Housings
- Insertion Force-Max :
- 1.0008 N
- Applications :
- -
- Mating Contact Row Spacing :
- 0.039 inch
- Contact Gender :
- FEMALE
- Body Depth :
- 0.089 inch
- Voltage Rating :
- 250VAC/DC
- Reliability :
- COMMERCIAL
- Connector Type :
- BOARD CONNECTOR
- Style :
- Board to Board
- Reach Compliance Code :
- Compliant
- Rated Current (Signal) :
- 1 A
- Material Flammability Rating :
- UL94 V-0
- PCB Contact Row Spacing :
- 3.429 mm
- Contact Type :
- Female Socket
- Dielectric Withstanding Voltage :
- 200VAC V
- Pitch - Mating :
- 0.039 (1.00mm)
- Contact Finish - Post :
- Gold
- Mounting Option 1 :
- LOCKING
- Number of Positions :
- 14
- Series :
- BC084
- Operating Temperature :
- -40°C ~ 105°C
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Resistance :
- 20 mΩ
- Row Spacing - Mating :
- 0.039 (1.00mm)
- Number of Rows :
- 2
- Insulation Height :
- 0.089 (2.26mm)
- Base Product Number :
- BC084
- Insulation Resistance :
- 500000000 Ω
- Contact Length - Post :
- -
- JESD-609 Code :
- e4
- Contact Finish Thickness - Mating :
- Flash
- Insulator Color :
- Black
- Termination :
- Solder
- Contact Style :
- SQ PIN-SKT
- Datasheets
- BC084-14-A-0390-L-C
BC084-14-A-0390-L-C datasheet pdf and Integrated Circuits (ICs) product details from GCT stock available at Xinshop
