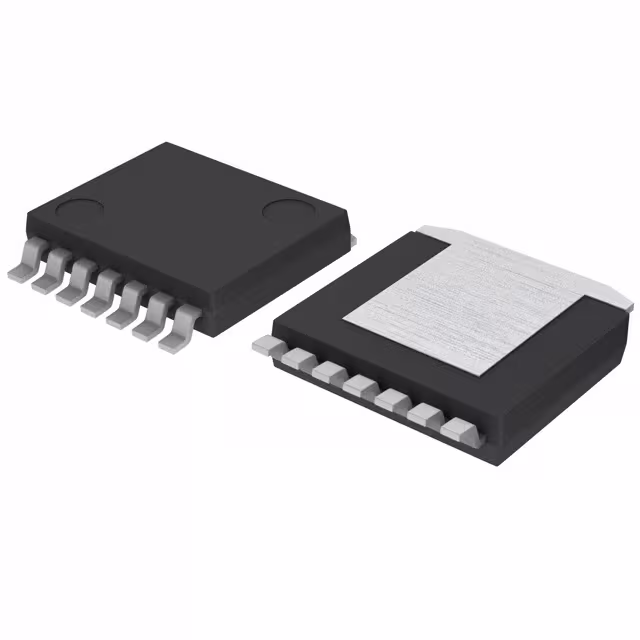

BD3020HFP-TR

Manufacturer :

ROHM Semiconductor

Product Category :

Voltage Regulators - Linear

Dropout Voltage1-Max :

0.6 V

Voltage - Output (Min/Fixed) :

5V

Mounting Type :

Surface Mount

Packing Method :

TR

Type :

LDO

Output Voltage1-Nom :

5 V

Load Regulation :

70 mV

PSRR :

55dB (120Hz)

Seated Height-Max :

2.135 mm

Terminal Position :

Single

Product :

LDO Regulators

Number of Terminals :

7

Polarity :

Negative

RoHS :

Details

Current - Output :

500mA

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Output Voltage1-Min :

4.9 V

Dropout Voltage@Current (Max) :

0.6@200mA

Dropout Voltage :

300 mV

Protection Features :

Over Current, Over Temperature

Output Type :

FIXED

Output Current1-Max :

0.5 A

JESD-30 Code :

R-PSSO-G7

Voltage - Output (Max) :

-

Length :

9.395 mm

Operating Temperature :

-40°C ~ 125°C (TA)

Output Configuration :

Positive

Input Voltage (Min) :

5.6(V)

Dropout Voltage1-Nom :

0.3 V

Adjustability :

FIXED

Package / Case :

HRP-7

Number of Regulators :

1

Input Voltage :

36(V)

Product Status :

Active

Output Current :

500 mA

Voltage - Input (Max) :

36V

Number of Outputs :

1 Output

Terminal Pitch :

1.27 mm

Supplier Device Package :

HRP7

Input Voltage Absolute-Max :

50 V

Series :

-

Package Shape :

RECTANGULAR

Minimum Operating Temperature :

- 40 C

Number of Functions :

1

Operating Temp Range :

-40C to 125C

Voltage Dropout (Max) :

0.6V @ 200mA

Reach Compliance Code :

Compliant

Voltage Tolerance-Max :

2%

Packaging :

MouseReel

Terminal Form :

Gull wing

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Package Type :

HRP

Width :

8 mm

Maximum Operating Temperature :

+ 125 C

Output Voltage1-Max :

5.1 V

Dropout Voltage@Current (Typ) :

0.3@200mA

Control Features :

Reset, Watchdog

Line Regulation :

35 mV

Mounting Style :

SMD/SMT

Output Voltage :

5 V

Power Dissipation :

1.6(W)

Current - Quiescent (Iq) :

130 µA

Surface Mount :

yes

Operating Supply Current :

80 uA

Operating Temperature TJ-Max :

150 °C
