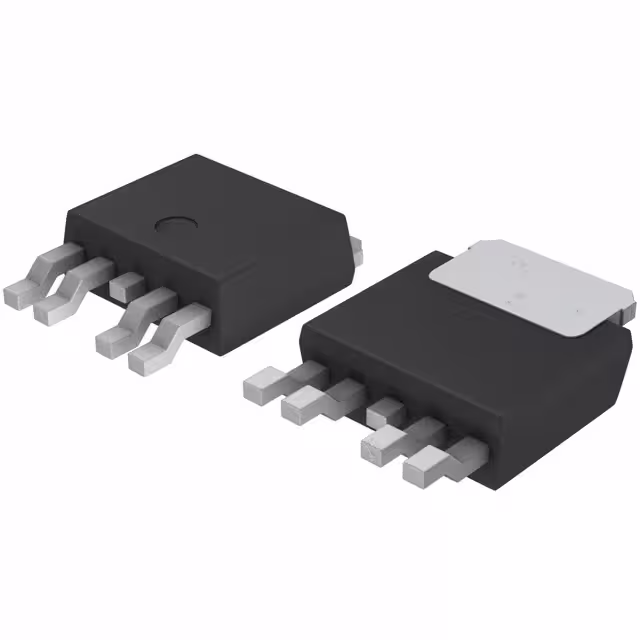

BD33FC0WFP-E2

Manufacturer :

ROHM Semiconductor

Product Category :

Voltage Regulators - Linear

Reach Compliance Code :

Compliant

ch :

1

Seated Height-Max :

2.3 mm

Voltage - Input (Max) :

26.5V

Vout (Typ.) [V] :

3

Output Current :

1000(mA)

Dropout Voltage :

300 mV

JESD-30 Code :

R-PSSO-G4

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Load Regulation :

0.066V

ECCN Code :

EAR99

Voltage - Output (Max) :

-

Product Status :

Active

Output Voltage1-Nom :

3.3 V

Operating Temp Range :

-25C to 85C

Output Voltage1-Min :

3.267 V

Vout Precision :

±1

Mounting Type :

Surface Mount

Protection Features :

Over Current, Over Temperature

Output Voltage1-Max :

3.333 V

RoHS :

Lead free / RoHS Compliant

Number of Functions :

1

Brand :

Rohm Semiconductor

Current - Output :

1A

Output Configuration :

Positive

Vin(Min.)[V] :

4.0

Width :

5.5 mm

Packaging :

Tape and Reel

PSRR :

-

Control Features :

Enable

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Iout(Max.)[A] :

1.0

Operating Temperature TJ-Max :

150 °C

Polarity :

Positive

Reference Voltage :

0.758(V)

Length :

6.5 mm

Operating Temperature :

-25°C ~ 85°C (TA)

Voltage Dropout (Max) :

0.7V @ 500mA

Minimum Operating Temperature :

- 25 C

Package Type :

TO-252

Manufacturer :

Rohm Semiconductor

Operating Supply Current :

2.5 mA

Series :

-

Package / Case :

TO252-5

Vin(Max.)[V] :

26.5

Number of Outputs :

1

Product :

LDO Regulators

Number of Regulators :

1

Package Shape :

RECTANGULAR

Dropout Voltage@Current (Typ) :

0.4(MIN)@500MA

Dropout Voltage@Current (Max) :

0.7(MIN)@500MA

Input Voltage :

26.5(V)

Terminal Position :

Single

Line Regulation :

80mV

Number of Terminals :

4

Product Type :

LDO Voltage Regulators

Mounting Style :

SMD/SMT

Output Current1-Max :

1 A

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Terminal Pitch :

1.27 mm

HTS Code :

8542.39.00.01

Terminal Form :

Gull wing

Subcategory :

PMIC - Power Management ICs

Output Type :

FIXED

Surface Mount :

yes

MSL :

MSL 1 - Unlimited

Voltage - Output (Min/Fixed) :

3.3V

Type :

LDO

Product Category :

LDO Voltage Regulators

Supplier Device Package :

TO-252-5

Current - Quiescent (Iq) :

2.5 mA

Output Voltage :

3.3(V)

Input Voltage (Min) :

4.3(V)

Maximum Operating Temperature :

+ 85 C
