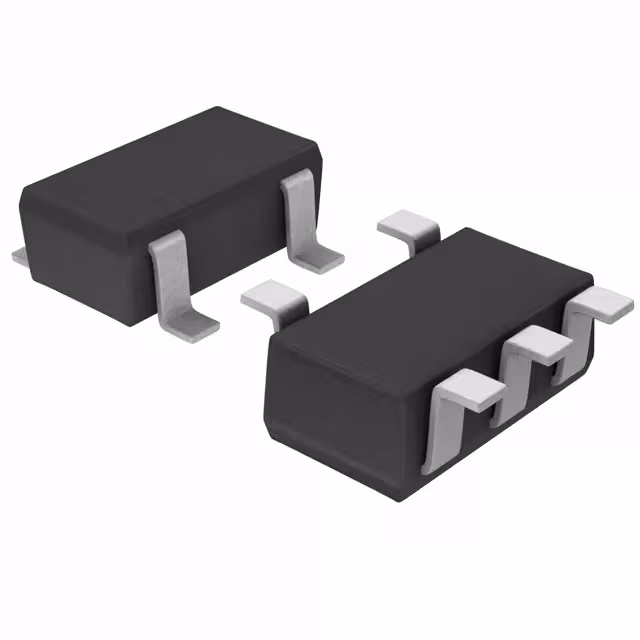

BD46E232G-MTR

Manufacturer :

ROHM Semiconductor

Product Category :

Supervisors

Output Type :

CMOS

Length :

2.9 mm

Product Type :

Supervisory Circuits

Number of Functions :

1

Reach Compliance Code :

Compliant

Battery Backup Switching :

No Backup

Manufacturer :

Rohm Semiconductor

Output :

Push-Pull, Totem Pole

JESD-30 Code :

R-PDSO-G5

Number of Channels :

1

Type :

Voltage Detectors

Product Category :

Supervisory Circuits

Supplier Device Package :

5-SSOP

Qualification :

AEC-Q101

Brand :

Rohm Semiconductor

Watchdog Timer :

No

Package Shape :

RECTANGULAR

Mounting Style :

SMD/SMT

Surface Mount :

yes

Number of Voltages Monitored :

1

Threshold Voltage :

2.3 V

Product Status :

Active

Lifecycle Status :

Production (Last Updated: 2 years ago)

Temperature Grade :

Industrial

Maximum Operating Temperature :

+ 105 C

Qualification Status :

Not Qualified

Accuracy :

1 %

Adjustable Threshold :

No

Operating Supply Current :

850 nA

HTS Code :

8542.39.00.01

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

ECCN Code :

EAR99

Base Product Number :

BD46E232

Packaging :

Cut Tape

Number of Terminals :

5

Supply Current-Max (Isup) :

0.00428 mA

Terminal Position :

Dual

Power Supplies :

1.2/10 V

Terminal Form :

Gull wing

Additional Feature :

2.3V AS DETECTION VOLTAGE, OPERATING VOLTAGE MIN IS 1.20V FOR -40 TO 25 DEG CELSIUS

Minimum Operating Temperature :

- 40 C

Technology :

CMOS

RoHS :

Details

Reset Delay Time :

200 ms

Mounting Type :

Surface Mount

Operating Temperature :

-40°C ~ 105°C (TA)

Voltage - Threshold :

2.3V

Manual Reset :

MANUAL RESET

Reset :

Active Low

Reset Timeout :

180ms Minimum

Supply Voltage-Min (Vsup) :

0.95 V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Seated Height-Max :

1.25 mm

Subcategory :

PMIC - Power Management ICs

Package / Case :

SSOP-5

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Terminal Pitch :

0.95 mm

Series :

BD46ExxxG-M

Width :

1.6 mm
