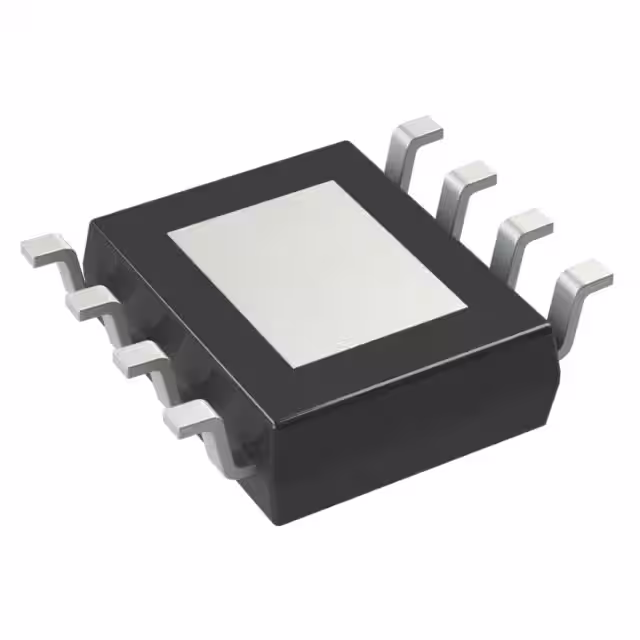

BDJ0GA3MEFJ-LBH2

Manufacturer :

ROHM Semiconductor

Product Category :

Voltage Regulators - Linear

Line Regulation :

1 %

Terminal Form :

Gull wing

Supplier Device Package :

8-HTSOP-J

Output Voltage1-Nom :

10 V

Number of Outputs :

1 Output

Output Current :

300 mA

Operating Temp Range :

-40C to 105C

Voltage - Output (Min/Fixed) :

12V

Lifecycle Status :

Production (Last Updated: 2 years ago)

Number of Terminals :

8

Output Voltage :

10 V

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Type :

LDO

Number of Functions :

1

Minimum Operating Temperature :

- 40 C

Reference Voltage :

0.8 V

Dropout Voltage :

600 mV

Packaging :

MouseReel

RoHS :

Details

JESD-30 Code :

R-PDSO-G8

Voltage - Output (Max) :

-

Operating Supply Current :

5 uA

Input Voltage :

14(V)

Terminal Position :

Dual

Power Dissipation :

2.11(W)

Output Voltage1-Max :

10.3 V

Product Status :

Active

Operating Temperature :

-40°C ~ 105°C

Package Shape :

RECTANGULAR

Load Regulation :

1.5 %

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Number of Channels :

1

Series :

-

Output Current1-Max :

0.3 A

PSRR :

-

Width :

3.9 mm

HTS Code :

8542.39.00.01

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Reach Compliance Code :

Compliant

Current - Quiescent (Iq) :

1.2 mA

Mounting Type :

Surface Mount

Control Features :

Enable, Soft Start

Package / Case :

HTSOP-J-8

ECCN Code :

EAR99

Number of Regulators :

1

Maximum Operating Temperature :

+ 105 C

Output Type :

FIXED

Voltage - Input (Max) :

14V

Product :

LDO Regulators

Watchdog Timer :

No

Terminal Pitch :

1.27 mm

Surface Mount :

yes

Mounting Style :

SMD/SMT

Output Voltage1-Min :

9.7 V

Current - Output :

300mA

Input Voltage (Min) :

4.5(V)

Voltage Dropout (Max) :

1.2V @ 300mA

Protection Features :

Over Current, Over Temperature

Package Type :

HTSOP-J EP

Polarity :

Negative

Operating Temperature TJ-Max :

150 °C

Output Configuration :

Positive

Length :

4.9 mm

Seated Height-Max :

1 mm
