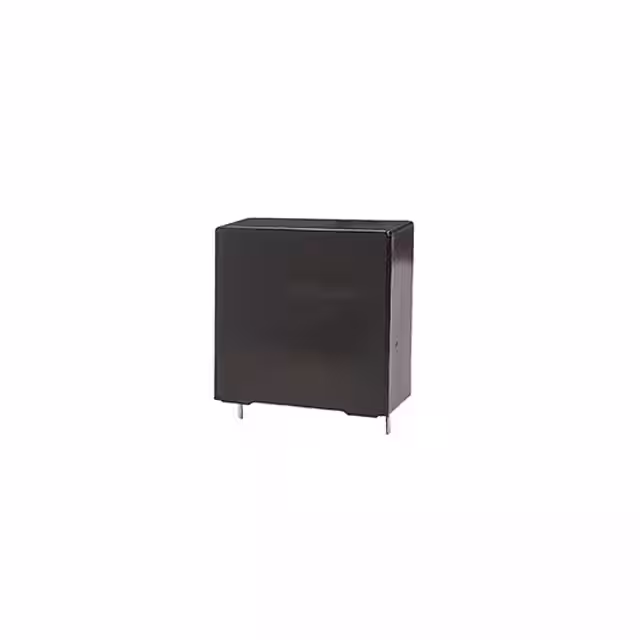

BLH105K701A012

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Package :

Bulk

Number of Pins :

2 Pin

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Applications :

Automotive; DC Link, DC Filtering

Voltage Rating - DC :

700V

Product :

DC Link Film Capacitors

Maximum Operating Temperature :

+ 105 C

Width :

18 mm

Height - Seated (Max) :

0.740" (18.80mm)

Ratings :

AEC-Q200

Operating Temperature :

-40°C ~ 105°C

Product Status :

Active

Dielectric Material :

Polypropylene (PP), Metallized

Mounting Type :

Through Hole

Minimum Operating Temperature :

- 40 C

Series :

BLH

Termination :

PC Pins

Package / Case :

Radial

Lead Spacing :

1.083" (27.50mm)

ESR :

54 mOhms

Tolerance :

±10%

Lead Diameter :

0.8 mm

Product Type :

Film Capacitors

Capacitance :

1 µF

Length :

32 mm

Lead Style :

Straight

Subcategory :

Capacitors

Voltage Rating - AC :

-

Size / Dimension :

1.260" L x 0.354" W (32.00mm x 9.00mm)

Height :

9 mm

Termination Style :

Axial

ESR (Equivalent Series Resistance) :

54 mOhms
