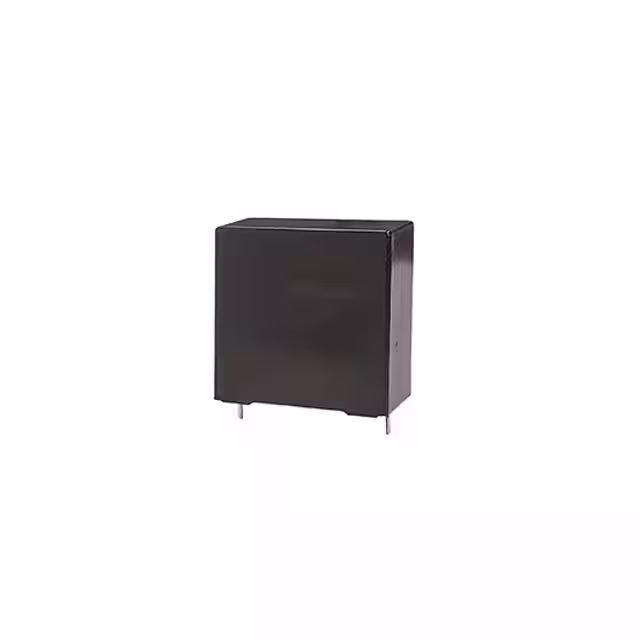

BLH206K551B084

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Lead Spacing :

1.476" (37.50mm)

Width :

40 mm

Product :

DC Link Film Capacitors

ESR :

6.5 mOhms

Lead Style :

Straight

Termination :

PC Pins

Product Type :

Film Capacitors

Mounting Type :

Through Hole

Series :

BLH

Applications :

Automotive; DC Link, DC Filtering

Height - Seated (Max) :

1.606" (40.80mm)

Subcategory :

Capacitors

Package :

Bulk

Package / Case :

Radial - 4 Leads

Ratings :

AEC-Q200

Maximum Operating Temperature :

+ 105 C

Length :

42.5 mm

Termination Style :

Axial

Size / Dimension :

1.673" L x 0.787" W (42.50mm x 20.00mm)

Tolerance :

±10%

Lead Diameter :

1.2 mm

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

ESR (Equivalent Series Resistance) :

6.5 mOhms

Number of Pins :

4 Pin

Operating Temperature :

-40°C ~ 105°C

Dielectric Material :

Polypropylene (PP), Metallized

Minimum Operating Temperature :

- 40 C

Height :

20 mm

Product Status :

Active

Voltage Rating - AC :

-

Voltage Rating - DC :

550V

Capacitance :

20 µF
