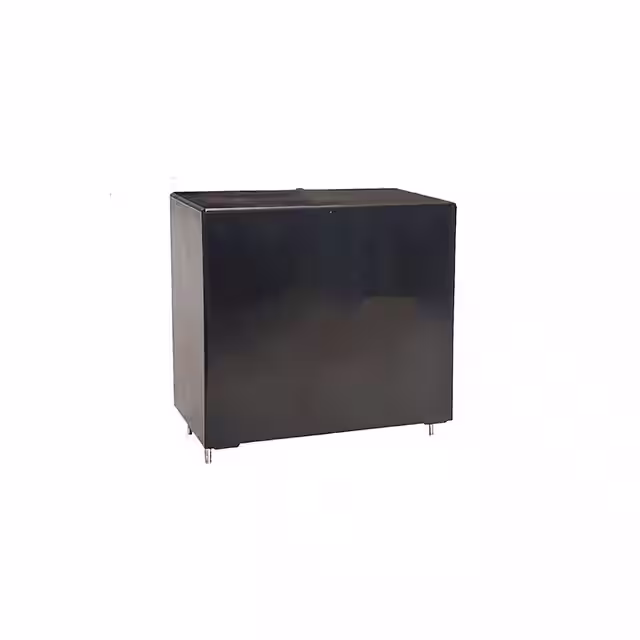

BLH756K801C134

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Lead Style :

Straight

Operating Temperature :

-40°C ~ 105°C

Product :

DC Link Film Capacitors

Maximum Operating Temperature :

+ 105 C

Mounting Type :

Through Hole

ESR (Equivalent Series Resistance) :

3.8 mOhms

Voltage Rating - AC :

-

Package / Case :

Radial - 4 Leads

Subcategory :

Capacitors

ESR :

3.8 mOhms

Minimum Operating Temperature :

- 40 C

Applications :

DC Link, DC Filtering

Series :

BLH

Dielectric Material :

Polypropylene (PP), Metallized

Product Type :

Film Capacitors

Height - Seated (Max) :

2.559" (65.00mm)

Package :

Bulk

Lead Diameter :

1.2 mm

Termination :

PC Pins

Size / Dimension :

2.264" L x 1.378" W (57.50mm x 35.00mm)

Lead Spacing :

2.067" (52.50mm)

Ratings :

-

Height :

35 mm

Number of Pins :

4 Pin

Voltage Rating - DC :

800V

Length :

57.5 mm

Termination Style :

Axial

Tolerance :

±10%

Width :

65 mm

Product Status :

Active

Capacitance :

75 μF

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life
