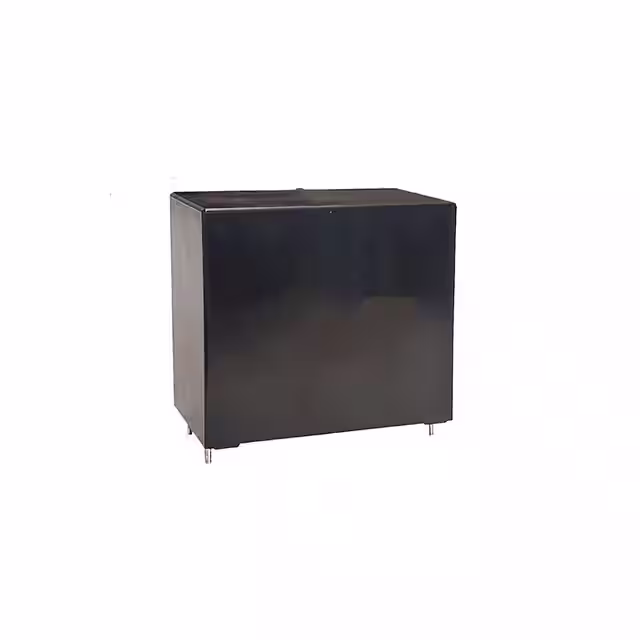

BLH906K701C114

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Dielectric Material :

Polypropylene (PP), Metallized

Length :

57.5 mm

Voltage Rating - DC :

700V

Size / Dimension :

2.264" L x 1.772" W (57.50mm x 45.00mm)

Termination Style :

Axial

Operating Temperature :

-40°C ~ 105°C

Tolerance :

±10%

Width :

55 mm

Number of Pins :

4 Pin

Series :

BLH

Product Status :

Active

Height - Seated (Max) :

2.165" (55.00mm)

Height :

45 mm

Mounting Type :

Through Hole

Applications :

Automotive; DC Link, DC Filtering

ESR :

3.5 mOhms

Package / Case :

Radial - 4 Leads

Package :

Bulk

Lead Diameter :

1.2 mm

Maximum Operating Temperature :

+ 105 C

ESR (Equivalent Series Resistance) :

3.5 mOhms

Termination :

PC Pins

Subcategory :

Capacitors

Lead Style :

Straight

Ratings :

AEC-Q200

Capacitance :

90 µF

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Product Type :

Film Capacitors

Lead Spacing :

2.067" (52.50mm)

Voltage Rating - AC :

-

Minimum Operating Temperature :

- 40 C

Product :

DC Link Film Capacitors
