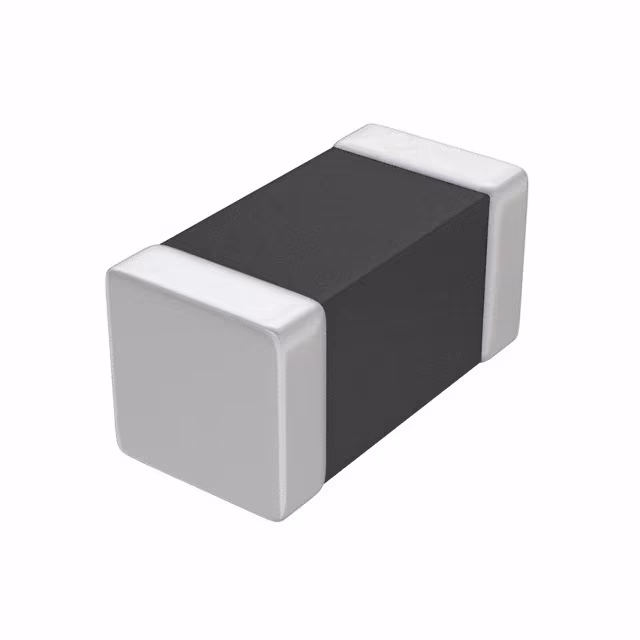

BLM02KX180SN1D

Manufacturer :

Murata Electronics

Product Category :

Ferrite Beads and Chips

Dimensions :

0.40 x 0.20 x 0.30mm

Height (Max) :

0.009" (0.22mm)

Base Product Number :

BLM02KX

Product Height :

0.3mm

Filter Type :

Power Line

Type :

Chip Ferrite Bead

Tolerance :

25 %

Height :

0.2 mm

Diameter :

-

Package :

Digi-Reel?

Number of Lines :

1

Subcategory :

Ferrites

Impedance @ Frequency :

18 Ohms @ 100 MHz

Series :

EMIFIL?, BLM02A

Impedance :

18ohm

Operating Temperature :

-55°C ~ 125°C

Product Type :

Ferrite Beads

Brand :

Murata Electronics

Size / Dimension :

0.016" L x 0.008" W (0.40mm x 0.20mm)

DC Resistance (DCR) (Max) :

45mOhm

Manufacturer :

Murata

Mounting Type :

Surface Mount

Package / Case :

01005 (0402 Metric)

Product Status :

Active

Length :

0.4 mm

Impedance Tolerance :

± 25%

Termination Style :

SMD/SMT

Package Type :

01005

Ratings :

-

Minimum Operating Temperature :

- 55 C

Product :

Ferrite Beads

Current Rating (Max) :

1.2A

Packaging :

MouseReel

Product Category :

Ferrite Beads

Product Length :

0.4mm

Maximum Operating Temperature :

+ 125 C

Qualification :

-

RoHS :

Details

Width :

0.2 mm

Product Width :

0.2mm
