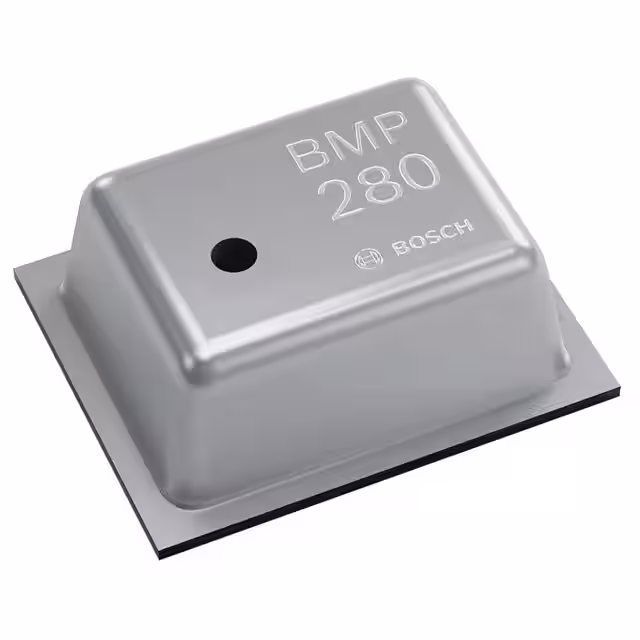

BMP280

Manufacturer :

Bosch Sensortec

Product Category :

Pressure Sensors, Transducers

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Output Type :

I²C, SPI

Sensors/Transducers Type :

PRESSURE SENSOR,PIEZORESISTIVE

Package Type :

LGA

Manufacturer :

Bosch Sensortec

Supplier Device Package :

8-SMD

Termination Type :

Solder

Maximum Operating Temperature :

+85 °C

Pressure Sensing Mode :

Absolute

Voltage - Supply :

1.71 V ~ 3.6 V

Product Status :

Obsolete

Output :

16b

Mounting Type :

Surface Mount

Features :

Standby Mode

Port Type :

HOLE

Series :

--

Minimum Operating Temperature :

-40 °C

Operating Current-Max :

0.0042 mA

Operating Pressure :

4.35 PSI ~ 15.95 PSI (30 kPa ~ 110 kPa)

Pressure Range-Max :

15.95 Psi

Pin Count :

8

Operating Temperature :

-40°C ~ 85°C

Package / Case :

8-SMD

Body Length or Diameter :

2.5 mm

Surface Mount :

yes

Additional Feature :

IT ALSO HAS 3-WIRE INTERFACE

Port Size :

--

Maximum Output Voltage :

3.6 V

Port Style :

--

Applications :

Board Mount

Response Time :

2000 μs

Accuracy :

±0.015 PSI (±0.1 kPa)

Sensor Type :

Absolute Pressure Sensors

Pressure Type :

Absolute

Maximum Operating Supply Voltage :

3.6 V

Output Interface Type :

4-WIRE INTERFACE

Mounting Feature :

Surface Mount

Termination Style :

SMD (SMT) Tab

Body Breadth :

2 mm

Maximum Pressure :

290.08 PSI (2000 kPa)

Body Height :

0.95 mm

Number of Bits :

20

Reach Compliance Code :

Compliant

Dimensions :

2.5 x 2 x 0.95mm

Pressure Range-Min :

4.351 Psi
