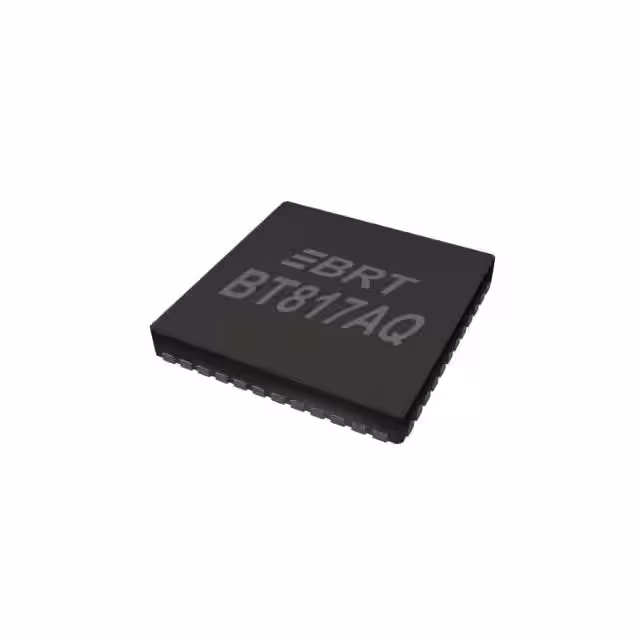

BT817AQ-R
Or copy the link below:
- Mfr.Part #
- BT817AQ-R
- Manufacturer
- Bridgetek
- Package / Case
- VQFN-64
- Datasheet
- Download
- Description
- EVE4 GRAPHICS CONTROLLER IC WITH
- Stock
- 11,585
- In Stock ：
- 11,585
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bridgetek
- Product Category :
- Application Specific Microcontrollers
- Program Memory Type :
- Flash
- Brand :
- Bridgetek
- Series :
- BT817AQ
- Packaging :
- Reel
- Product Category :
- Video ICs
- Interface :
- LED, LCD, QSPI, SPI
- Operating Supply Current :
- 30 mA
- Applications :
- Human Machine Interfaces (HMI)
- Maximum Operating Temperature :
- + 105 C
- Number of Channels :
- 1 Channel
- Product :
- Video ICs
- Supplier Device Package :
- 64-VQFN (9x9)
- Core Processor :
- -
- Mounting Style :
- SMD/SMT
- Subcategory :
- Video ICs
- Package / Case :
- VQFN-64
- Mounting Type :
- Surface Mount
- Type :
- Capacitive Touch
- Operating Supply Voltage :
- 3.3 V
- Interface Type :
- SPI
- Minimum Operating Temperature :
- - 40 C
- Number of I/O :
- 4
- RoHS :
- Details
- Product Status :
- Active
- RAM Size :
- -
- Controller Series :
- BT81X
- Qualification :
- AEC-Q100
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Operating Temperature :
- -40°C ~ 105°C (TA)
- Voltage - Supply :
- 3V ~ 3.6V
- Manufacturer :
- Bridgetek
- Product Type :
- Video ICs
- Datasheets
- BT817AQ-R
Application Specific Microcontrollers Bridgetek BT817AQ-R Overview
Bridgetek的BT817AQ-R是一款先进的EVE4图形控制器集成电路，专为图形处理应用而设计。这款集成电路采用了嵌入式视频引擎(EVE)技术，提供高效、经济且强大的图形处理功能。BT817AQ-R能够实现触摸、音频和显示处理的集成，使其成为多功能人机界面(HMI)解决方案的理想选择。该器件还具有广泛的显示支持和音频输出能力，适合各种终端应用场景。凭借其强大的功能和可靠的性能，BT817AQ-R在应用特定微控制器市场中备受客户青睐。BT817AQ-R Features
- **嵌入式视频引擎(EVE)技术**：提供先进的图形处理能力，支持多种显示类型和触摸功能。 - **集成音频支持**：包含音频合成和播放功能，方便音频信号输出。 - **高效功耗**：优化的设计确保了较低的能耗，非常适合嵌入式应用。 - **广泛的接口兼容性**：支持SPI等多种通信接口，方便与其他设备集成。 - **可扩展性**：适用于各种分辨率和屏幕尺寸，适应不同的应用需求。BT817AQ-R Applications
- **工业人机界面(HMI)**：BT817AQ-R的图形处理能力可用于工业控制设备中的人机界面，提供直观的用户交互。 - **医疗设备**：适用于医疗设备中的显示屏和触摸界面，确保信息的清晰呈现和精准操作。 - **消费类电子产品**：在智能家居设备和多媒体播放器中使用，提供优质的图形显示和音频支持。 - **车载娱乐系统**：BT817AQ-R的音频和图形处理能力可用于车载显示器，为驾驶者和乘客提供丰富的多媒体体验。You may place an order without registering to Xinshop. We strongly recommend that you log in before purchasing as you can track your order at any time.
