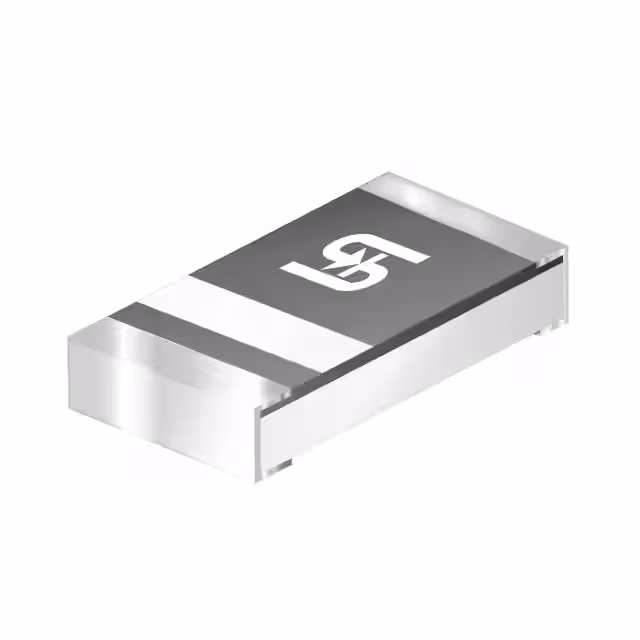

BZY55C2V4 RYG

Manufacturer :

Taiwan Semiconductor

Product Category :

Diodes - Zener - Single

Current - Reverse Leakage @ Vr :

50μA @ 1V

Configuration :

Single

Diode Type :

ZENER DIODE

ECCN Code :

EAR99

Diode Element Material :

SILICON

Working Test Current :

5mA

Impedance-Max :

85Ohm

Reference Voltage :

2.4V

Mounting Type :

Surface Mount

Number of Terminations :

2

Polarity :

Unidirectional

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Temperature :

-55°C~150°C TJ

Surface Mount :

yes

JESD-609 Code :

e3

Package / Case :

0805 (2012 Metric)

Voltage - Forward (Vf) (Max) @ If :

1.5V @ 10mA

Power Dissipation-Max :

0.5W

Factory Lead Time :

26 Weeks

HTS Code :

8541.10.00.50

Number of Elements :

1

Voltage - Zener (Nom) (Vz) :

2.4V

Qualification Status :

Not Qualified

Power - Max :

500mW

Terminal Position :

Dual

Voltage Tol-Max :

2%

JESD-30 Code :

R-PDSO-R2

Packaging :

Tape and Reel (TR)

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Tolerance :

±5%

Terminal Finish :

Matte Tin (Sn)

Terminal Form :

WRAP AROUND
