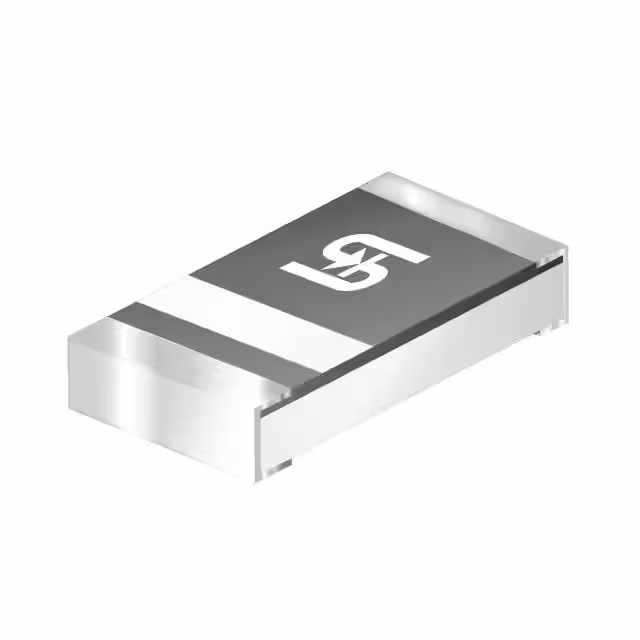

BZY55C30 RYG

Manufacturer :

Taiwan Semiconductor

Product Category :

Diodes - Zener - Single

Polarity :

Unidirectional

Mounting Type :

Surface Mount

Factory Lead Time :

26 Weeks

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power - Max :

500mW

Voltage - Forward (Vf) (Max) @ If :

1.5V @ 10mA

Surface Mount :

yes

Working Test Current :

5mA

Terminal Form :

WRAP AROUND

Impedance-Max :

80Ohm

Voltage - Zener (Nom) (Vz) :

30V

Tolerance :

±5%

Power Dissipation-Max :

0.5W

Operating Temperature :

-55°C~150°C TJ

Current - Reverse Leakage @ Vr :

100nA @ 22V

Configuration :

Single

Reference Voltage :

30V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Diode Element Material :

SILICON

Terminal Position :

Dual

HTS Code :

8541.10.00.50

Voltage Tol-Max :

2%

Diode Type :

ZENER DIODE

JESD-609 Code :

e3

ECCN Code :

EAR99

Number of Elements :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Terminations :

2

Terminal Finish :

Matte Tin (Sn)

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Package / Case :

0805 (2012 Metric)

JESD-30 Code :

R-PDSO-R2

Qualification Status :

Not Qualified
