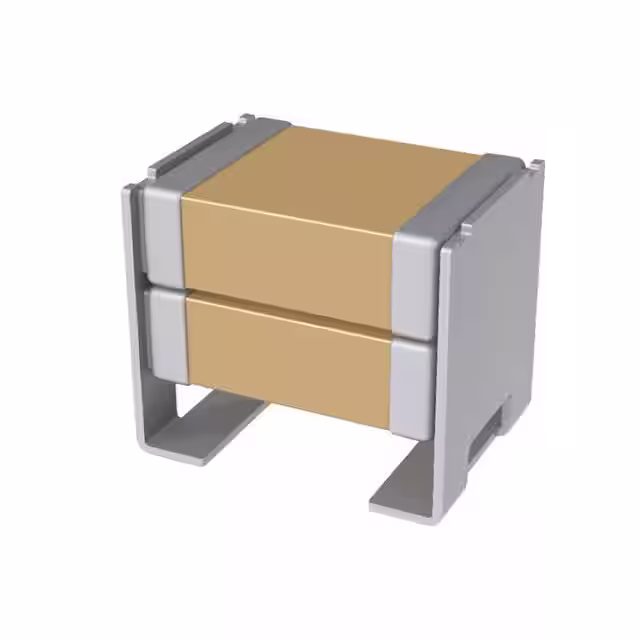

C2220C334MCR2CAUTO

Manufacturer :

KEMET

Product Category :

Ceramic Capacitors

Class :

Class 2

Capacitance :

0.33 µF

Product Category :

Multilayer Ceramic Capacitors MLCC - SMD/SMT

Features :

Low ESL, High Voltage

Temperature Characteristics Code :

X7R

Length :

5.7 mm

Dielectric :

X7R

Brand :

KEMET

Qualification :

AEC-Q200

Width :

5 mm

Lead Style :

J-Lead

Package / Case :

Stacked SMD, 2 J-Lead

Mounting Type :

Surface Mount, MLCC

Operating Temperature :

-55°C ~ 125°C

Subcategory :

Capacitors

Size / Dimension :

0.236" L x 0.197" W (6.00mm x 5.00mm)

ECCN Code :

EAR99

Termination :

Standard

Type :

High Voltage X7R Dielectric Commercial MLCCs

Size Code :

2220

Positive Tolerance :

20%

Mounting Feature :

Surface Mount

Negative Tolerance :

20%

Ratings :

AEC-Q200

Failure Rate :

-

Capacitor Type :

CERAMIC CAPACITOR

Dielectric Material :

Ceramic

Voltage - Rated :

500V

Thickness (Max) :

0.217" (5.50mm)

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

RoHS :

Details

Temperature Coefficient :

X7R

Reach Compliance Code :

Compliant

Package :

Tape and Reel (TR)

Number of Terminals :

2

Terminal Shape :

J BEND

Lead Spacing :

-

Packaging :

MouseReel

Manufacturer :

KEMET

Surface Mount :

yes

HTS Code :

8532.24.00.20

Height :

5 mm

Pbfree Code :

yes

Reference Standard :

AEC-Q200

Applications :

Automotive, Bypass, Decoupling

Height - Seated (Max) :

-

Base Product Number :

C2220C

Maximum Operating Temperature :

+ 125 C

Rated (DC) Voltage (URdc) :

500 V

Product Type :

Ceramic Capacitors

Tolerance :

±20%

Multilayer :

yes

Packing Method :

TR, Embossed Plastic, 7 Inch

Termination Style :

SMD/SMT

JESD-609 Code :

e3

Product Status :

Active

Product :

General Type MLCCs

Package Shape :

RECTANGULAR PACKAGE

Minimum Operating Temperature :

- 55 C

Series :

KPS SMD Auto X7R HV
