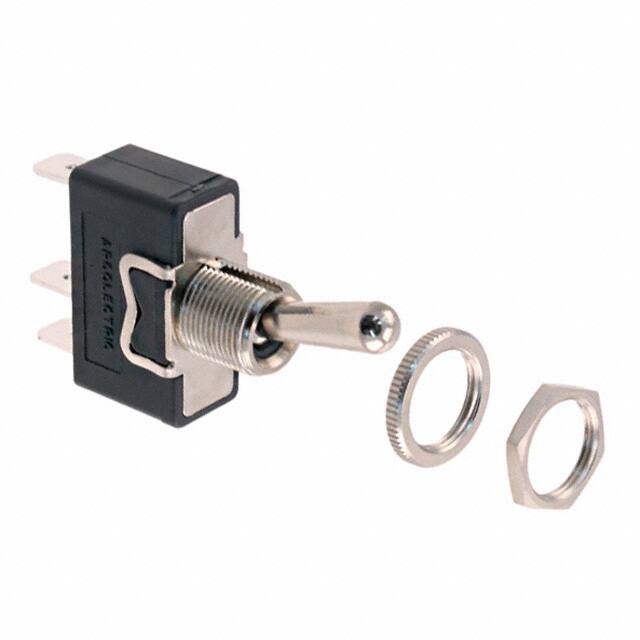

C3910BA

Manufacturer :

Bulgin

Product Category :

DC Voltage Rating (Max) :

72@(CSA/UL)

Current Rating :

16 A

Contact Current(DC)-Max :

14 A

Product Height (mm) :

55.5(mm)

Contact Function :

On-On

Contact Resistance :

0.1 mΩ

Body Length or Diameter :

29.5 mm

Compliance :

UL; CSA

Number of Terminals :

3

Actuator :

Bat

Switch Function :

ON - ON

Illumination Color :

-

Lamp Type :

-

Contact Current(AC)-Max :

16 A

Housing Material :

NYLON 6.6/N/A

Switch Action :

LATCHED

Manufacturer :

Bulgin

Contact Voltage(DC)-Max :

36 V

HTS Code :

8536.50.90.65

Actuator Style :

Round Lever

AC Voltage Rating (Max) :

277

Body Orientation :

Straight

Actuator Finish :

Nickel

Actuator Length :

0.689 inch

IP Rating :

IP67

Pole Throw Configuration :

SPDT

Surface Mount :

No

Current Rating (Max) :

16@277VAC(A)

ECCN Code :

EAR99

Bushing Type :

Threaded

Contact Form :

SPDT

Contact Material :

Silver Alloy

Termination Style :

Quick Connect

Insulation Resistance :

20000000 Ω

Switch Type :

TOGGLE SWITCH

Contact Voltage(AC)-Max :

277 V

Thread Size :

15/32-32

Termination Type :

Quick Connect

Actuator Length (mm) :

17.5(mm)

Product Length (mm) :

29.5(mm)

Dielectric Strength :

>1500VAC/>1500VDC

Mounting Style :

Panel Mount

Mounting Feature :

PANEL MOUNT-THREADED

Reach Compliance Code :

Compliant

Switch Configuration :

ON ON

Body Breadth :

14 mm

Sealing :

IP67

Base/Housing Material :

Nylon 6.6

Actuator Material :

Metal

Actuator Type :

METAL LEVER

Body Height :

17 mm
