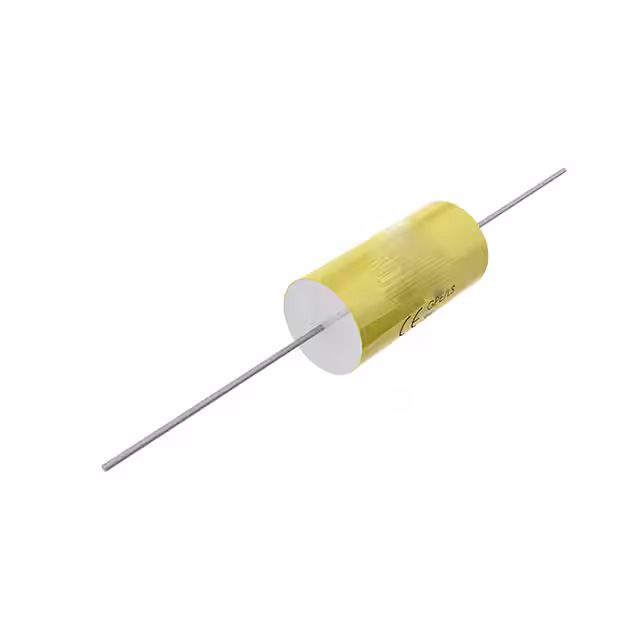

C4CAMUB3100AA0J

Manufacturer :

KEMET

Product Category :

Film Capacitors

Type :

Printed Circuit Board Mount Power Film Capacitor

Terminal Shape :

Wire

Diameter :

10.5 mm

Size / Dimension :

0.413" Dia x 1.299" L (10.50mm x 33.00mm)

Capacitor Type :

FILM CAPACITOR

Operating Temperature :

-40°C ~ 85°C

Applications :

DC Link, DC Filtering; High Frequency, Switching; Snubber

Terminal Finish :

Tin (Sn)

Number of Pins :

2 Pin

Termination :

PC Pins

RoHS :

Details

Package Shape :

TUBULAR PACKAGE

Product :

General Film Capacitors

Height - Seated (Max) :

-

Negative Tolerance :

5%

Length :

33 mm

Base Product Number :

C4CAMU

Additional Feature :

RATED AC VOLTAGE (V): 450

HTS Code :

8532.25.00.60

Number of Terminals :

2

Dielectric Material :

Polypropylene (PP), Metallized

ESR :

16.6 mOhms

Mounting Feature :

THROUGH HOLE MOUNT

Reach Compliance Code :

Compliant

Package :

Box

Surface Mount :

No

Product Type :

Film Capacitors

Manufacturer :

KEMET

Lead Style :

Straight

Brand :

KEMET

Product Category :

Film Capacitors

Minimum Operating Temperature :

- 40 C

Features :

-

Maximum Operating Temperature :

+ 85 C

Series :

C4C

Packing Method :

Bulk

Dielectric :

Polypropylene (PP)

Lead Spacing :

-

Capacitance :

0.1 µF

Tolerance :

±5%

Rated (DC) Voltage (URdc) :

850 V

Ratings :

-

Voltage Rating - DC :

850V

Termination Style :

Axial

Product Status :

Active

Subcategory :

Capacitors

Positive Tolerance :

5%

Voltage Rating - AC :

450V

Packaging :

Bulk

Lead Diameter :

0.8 mm

ECCN Code :

EAR99

ESR (Equivalent Series Resistance) :

16.6 mOhms

Rated (AC) Voltage (URac) :

450 V

JESD-609 Code :

e3
