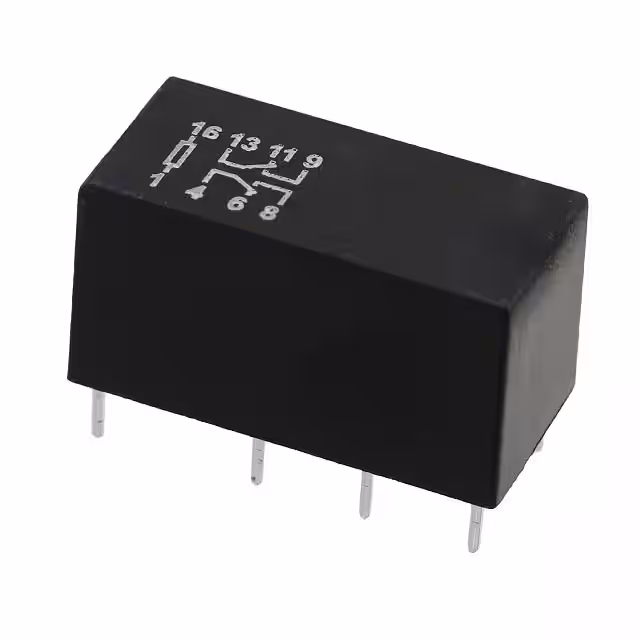

C93427
Or copy the link below:
- Mfr.Part #
- C93427
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- Datasheet
- Download
- Description
- RELAY TELECOM DPDT 2A 6VDC
- Stock
- 43,650
- In Stock ：
- 43,650
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Signal Relays, Up to 2 Amps
- Coil Resistance :
- 240 Ohms
- Body Breadth :
- 10 mm
- Reach Compliance Code :
- Compliant
- Operating Frequency-Min :
- 100 MHz
- Contact Current(DC)-Max :
- 1.25 A
- Coil Type :
- Non Latching
- Contact Rating (Current) :
- 2A
- Seal Rating :
- -
- Package :
- Tube
- Switching Time :
- 21 ms
- Coil Power :
- 150 mW
- Surface Mount :
- No
- Release Time :
- 3ms
- Sealing :
- IP67
- Coil Voltage :
- 6VDC
- Mounting Type :
- Through Hole
- Must Operate Voltage :
- 4.3 VDC
- Coil Voltage(DC)-Max :
- 6 V
- Coil Operate Voltage(DC) :
- 4.3 V
- Relay Function :
- DPDT
- Contact Voltage(DC)-Max :
- 150 V
- Relay Action :
- Momentary
- Contact/Output Supply Type :
- AC/DC
- Turn Off Voltage (Min) :
- 0.6 Vdc
- Coil Current(DC)-Max :
- 0.025 A
- Contact Voltage(AC)-Max :
- 150 V
- Contact Current(AC)-Max :
- 1.25 A
- Must Release Voltage :
- 0.6 Vdc
- Body Length or Diameter :
- 20.2 mm
- Mounting Feature :
- THROUGH HOLE-STRAIGHT MOUNT
- Operate Time :
- 5ms
- Termination Type :
- Solder
- Operating Frequency-Max :
- 900 MHz
- Packaging :
- Tube
- Electrical Life :
- 200000 Cycle(s)
- Coil Current :
- 25.0mA
- ECCN Code :
- EAR99
- Relay Type :
- Telecom
- Switching Voltage :
- 250VAC, 220VDC - Max
- HTS Code :
- 8536.49.00.50
- Manufacturer :
- Cutler Hammer, Div of Eaton Co
- Series :
- MT2, AXICOM
- Features :
- --
- Additional Feature :
- RELEASE TIME WITH DIODE IN PARALLEL
- Coil Insulation :
- -
- Body Height :
- 11 mm
- Physical Dimension :
- 20.2mm X 10mm X 11mm
- Product Status :
- Active
- VSWR :
- 1.31
- Contact Material :
- Silver Nickel (AgNi), Gold (Au)
- Contact Form :
- DPDT (2 Form C)
- Termination Style :
- PC Pin
- Reference Standard :
- CECC; CSA; UL
- Coil Release Voltage(DC) :
- 0.6 V
- Coil/Input Supply Type :
- DC
- Turn On Voltage (Max) :
- 4.3 VDC
- Packing Method :
- BOX; TUBE
- Operating Temperature :
- -55°C ~ 85°C
- Datasheets
- C93427
