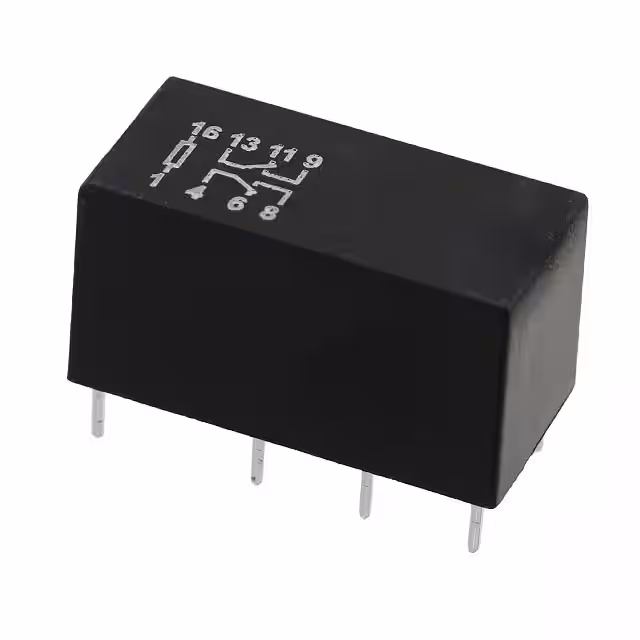

C93428

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Signal Relays, Up to 2 Amps

Operating Frequency-Max :

900 MHz

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

VSWR :

1.31

Turn On Voltage (Max) :

3.9 VDC

Contact Voltage(AC)-Max :

150 V

Coil Current :

33.3mA

Packaging :

Bulk

Applications :

GENERAL PURPOSE

Turn Off Voltage (Min) :

0.6 Vdc

Voltage - Clamping (Max) @ Ipp :

13.4V

Body Height :

11 mm

Reference Standard :

CECC; CSA; UL

Coil/Input Supply Type :

DC

Coil Type :

Non Latching

Coil Voltage :

6VDC

Contact Form :

DPDT (2 Form C)

Switching Time :

21 ms

Coil Voltage(DC)-Max :

6 V

Contact/Output Supply Type :

AC/DC

Must Operate Voltage :

3.9 VDC

ECCN Code :

EAR99

Capacitance @ Frequency :

--

Coil Operate Voltage(DC) :

3.9 V

Series :

TransZorb®

Coil Insulation :

-

Mounting Type :

Through Hole

Coil Power :

200 mW

Additional Feature :

RELEASE TIME WITH DIODE IN PARALLEL

Contact Voltage(DC)-Max :

150 V

Package / Case :

DO-201AA, DO-27, Axial

Coil Current(DC)-Max :

0.033 A

Reach Compliance Code :

Unknown

Must Release Voltage :

0.6 Vdc

Switching Voltage :

250VAC, 220VDC - Max

Termination Style :

PC Pin

Contact Current(AC)-Max :

1.25 A

Body Breadth :

10 mm

Power - Peak Pulse :

1500W (1.5kW)

Product Status :

Active

Operate Time :

5ms

Electrical Life :

200000 Cycle(s)

Operating Frequency-Min :

100 MHz

Voltage - Breakdown (Min) :

8.65V

Contact Material :

Silver Nickel (AgNi), Gold (Au)

Body Length or Diameter :

20.2 mm

Sealing :

IP67

Release Time :

3ms

Surface Mount :

No

Power Line Protection :

No

Coil Resistance :

180 Ohms

Type :

Zener

Voltage - Reverse Standoff (Typ) :

7.78V

Relay Action :

Momentary

Operating Temperature :

-55°C ~ 175°C (TJ)

Relay Type :

Telecom

Contact Rating (Current) :

2A

Relay Function :

DPDT

Features :

--

Package :

Tube

Physical Dimension :

20.2mm X 10mm X 11mm

Contact Current(DC)-Max :

1.25 A

Packing Method :

BOX; TUBE

HTS Code :

8536.49.00.50

Bidirectional Channels :

1

Manufacturer :

TE Connectivity

Base Product Number :

C934

Seal Rating :

-

Coil Release Voltage(DC) :

0.6 V

Termination Type :

Solder

Supplier Device Package :

1.5KE
