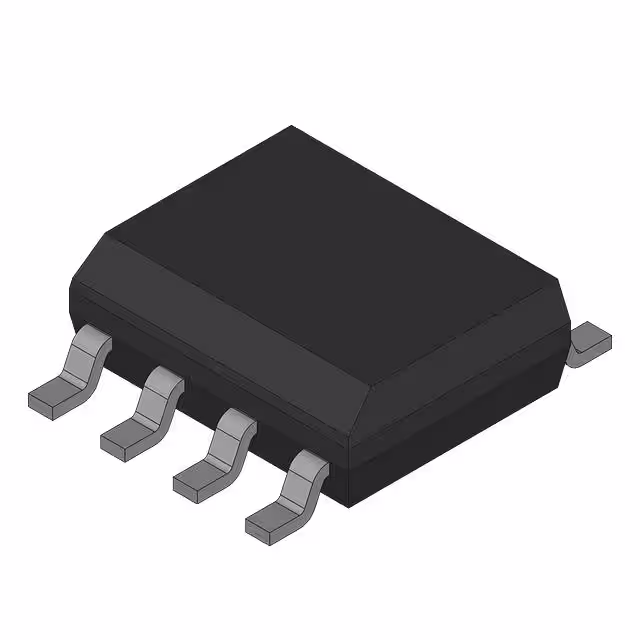

CA0258M

Manufacturer :

Harris Corporation

Product Category :

Instrumentation, OP Amps, Buffer Amps

Input Offset Voltage-Max :

7000μV

Length :

4.9mm

Unity Gain BW-Nom :

1000 kHz

Terminal Form :

Gull wing

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Pin Count :

8

Operating Temperature (Min) :

-25°C

Number of Functions :

2

Qualification Status :

Not Qualified

Frequency Compensation :

yes

JESD-30 Code :

R-PDSO-G8

Terminal Position :

Dual

Power Supplies :

+-1.5/+-15/3/30V

Average Bias Current-Max (IIB) :

0.3μA

HTS Code :

8542.33.00.01

Number of Terminals :

8

Low-Offset :

No

Supply Voltage :

5V

Terminal Pitch :

1.27mm

ECCN Code :

EAR99

Seated Height-Max :

1.75mm

Reach Compliance Code :

not_compliant

Width :

3.9mm

JESD-609 Code :

e0

Surface Mount :

yes

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Amplifier Type :

Operational Amplifier

Terminal Finish :

Tin/Lead (Sn/Pb)

Supply Voltage Limit-Max :

32V

Operating Temperature (Max) :

85°C

Architecture :

VOLTAGE-FEEDBACK

RoHS Status :

Non-RoHS Compliant

Common Mode Rejection Ratio :

85 dB

Temperature Grade :

Other
